Belt Width
16″
Inner Radius
23.6″
Outer Radius
39.4″
Top of Belt Height
36″
Fusion Move
Zero Tangent Radius
Conveyors
FUSION MOVE
Zero Tangent Radius Conveyors
Radius Conveyance Solution
Suitable for food processors needing radius conveyance in tight spaces.
Equipment Overview
Radius conveyance without the tangent.
Get a radius conveyor without the space consuming tangent conveyor with the our Zero Tangent Radius Conveyor.

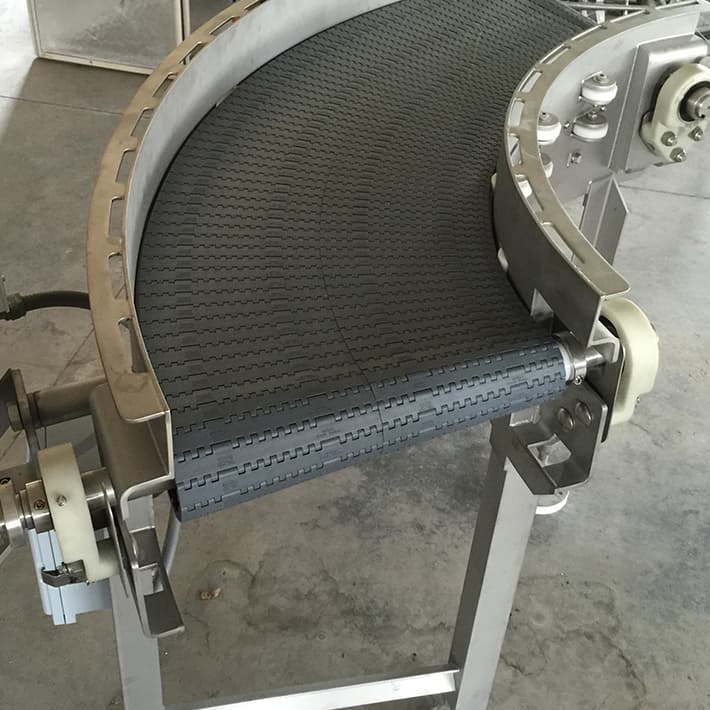

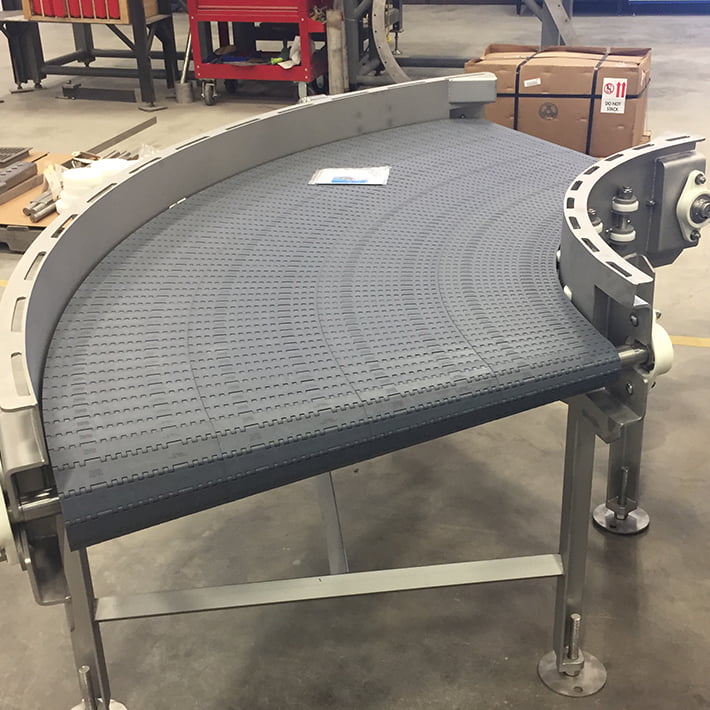

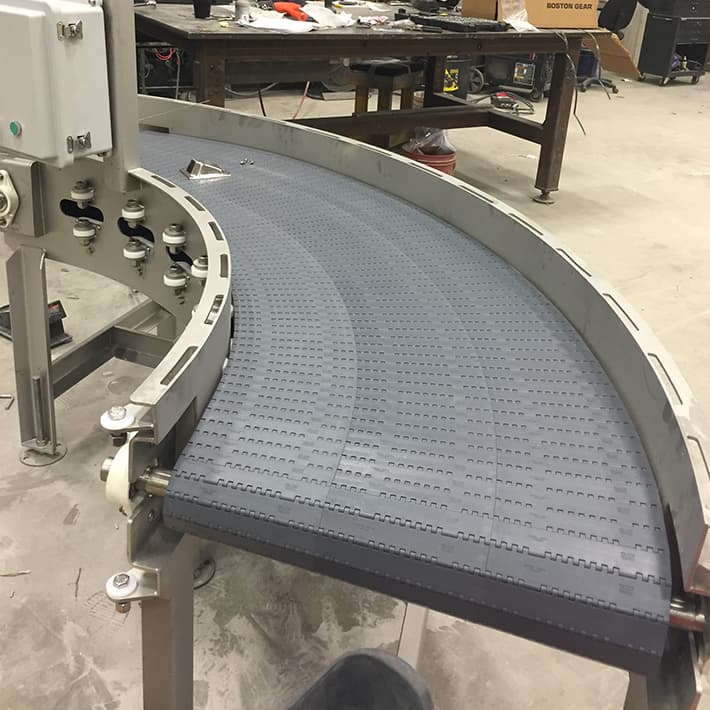

Utilizing Intralox Series 2100 Zero TangentTM Radius Flat Top belting, this conveyor provides a constant inner radius no matter the belt width and eliminates the need for a straight belt before and after the curve.
This means you fit a radius conveyor into a compact space and utilize more of your facility’s floor space.
We designed this conveyor in such a way as to reduce maintenance and costs while eliminating belt mistracking. The flat-top construction of the belt eliminates catch points in the conveyor, improves safety, and manages difficult to handle packages, heavier loads, and higher speeds.
Upgrade your radius conveyance with the Zero Tangent Radius Conveyor.
The Zero Tangent Radius Conveyor is available in 5 widths:
- 40″
- 32″
- 24″
- 16″
- 8″
Construction
- Stainless Steel Type 304 Construction
- Intralox Series 2100 Zero TangentTM Radius Flat Top belting
- All Seams Fully Seal Welded
- Bead Blast Finish
- Robust Design
Sanitation
- Easy to Clean
- Meets all AMI Sanitary Equipment Design Requirements
Safety
- Guarding Over all Injury Points
Frame Options:
- Formed Sheet Metal
- Angle Iron
Mounting Options:
- Ceiling
- Footpads
- Casters
Finish:
- Bead Blast
- 2B Finish
- DA Finish
Sanitation:
- Spray Bars
- Belt Scrapers
- Drip Pans
Construction:

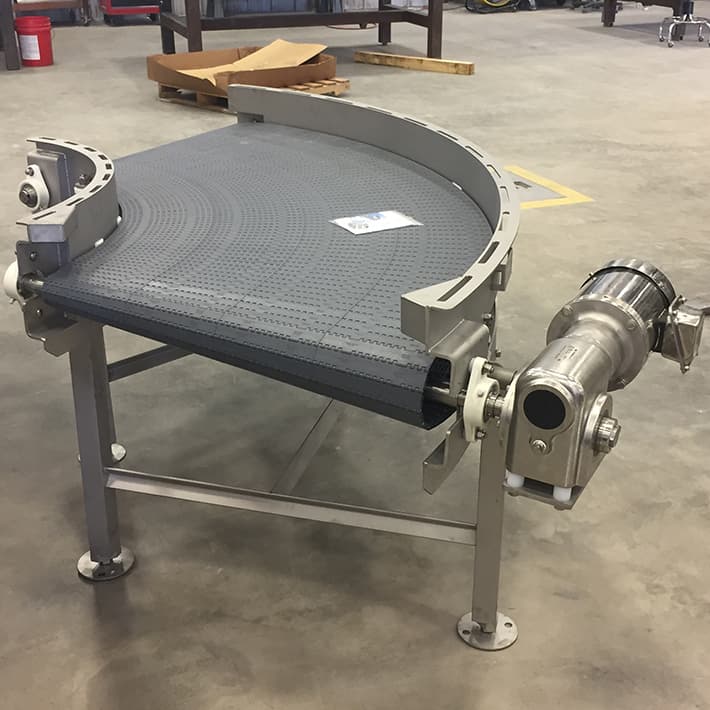

- Choice of Gearbox, Motor, Bearings

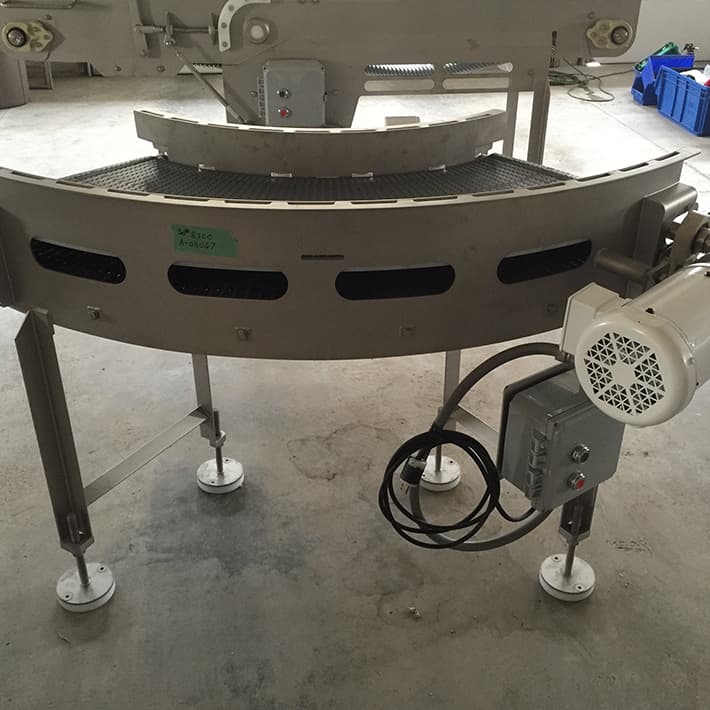

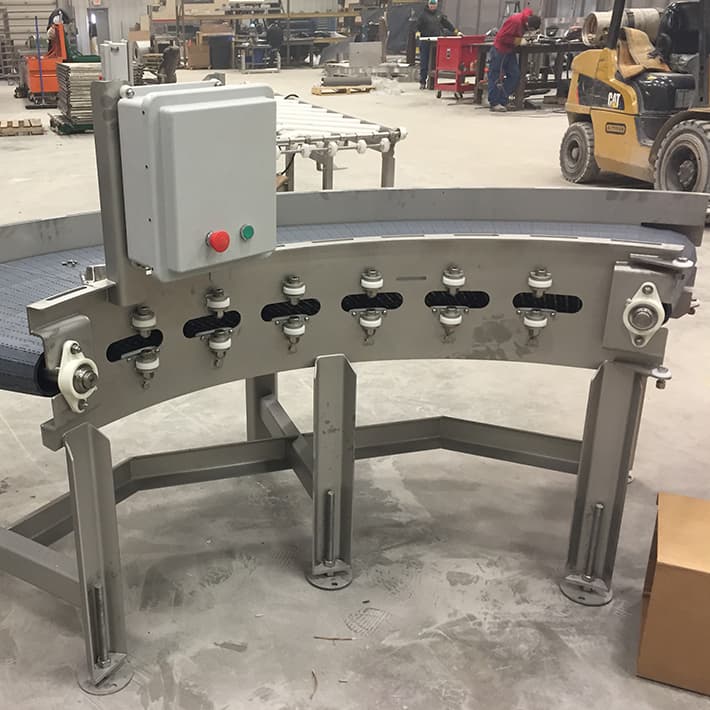

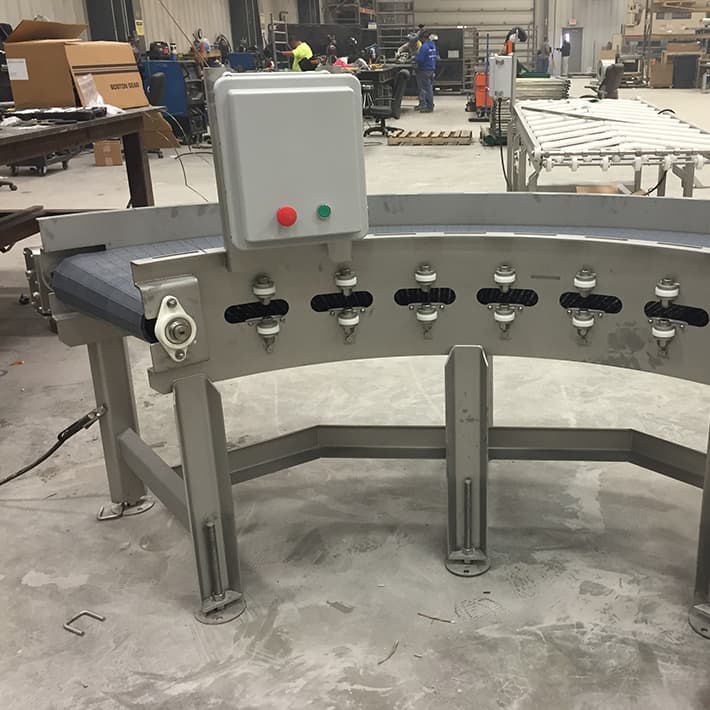

- Local Control Box
Download the catalog to learn more about our ZTR conveyors.
Equipment Videos
Technical Specs
Length
53.88″
Width
44.44″
Overall Height
39.63″
Weight
335.58 lbs
Belt Width
24″
Inner Radius
31.5″
Outer Radius
55.1″
Top of Belt Height
You choose leg height.
Length
68.29″
Width
60.13″
Overall Height
You choose leg height.
Weight
Depends on leg height.
Belt Width
24″
Inner Radius
39.4″
Outer Radius
63″
Top of Belt Height
NEED
Length
76.12″
Width
67.95″
Overall Height
40″
Weight
NEED
Belt Width
32″
Inner Radius
23.6″
Outer Radius
55.1″
Top of Belt Height
NEED
Length
68.58″
Width
60.76″
Overall Height
36″
Weight
NEED
Belt Width
40″
Inner Radius
23.6″
Outer Radius
63″
Top of Belt Height
36.75″
Length
77.21″
Width
68.28″
Overall Height
36.75″
Weight
576.10 lbs
Belt Width
40″
Inner Radius
23.6″
Outer Radius
63″
Top of Belt Height
You choose leg height.
Length
76.43″
Width
68.27″
Overall Height
You choose leg height.
Weight
Depends on leg height.
Belt Width
24″
Inner Radius
39.4″
Outer Radius
63″
Top of Belt Height
NEED
Length
115.11″
Width
68.87″
Overall Height
43.79″
Weight
895.24 lbs
