Model
HVM 400
Volume
400 ltr
Power
1.8 kW
Fusion Process
HVM
Brine Mixer
FUSION PROCESS
HVM Brine Mixer
Brine Mixing Solution
Suitable for processors looking to mix brine without any lumping.
Equipment Overview
Brine mixing without any lumping.
Get a fast and homogenous mixture of fluids and powdery substances with the Henneken brand HVM Brine Mixer.
Using the venturi effect, the substance to be mixed in is entered into the loading system and is automatically sucked in and mixed without any lumping — giving you a better brine mix to use in an injector or tumbler.
Available in 5 sizes ranging from a 400-liter tank to a 2,000-liter tank.
All tubes and valves on the brine mixer can be easily removed for cleaning and maintenance.

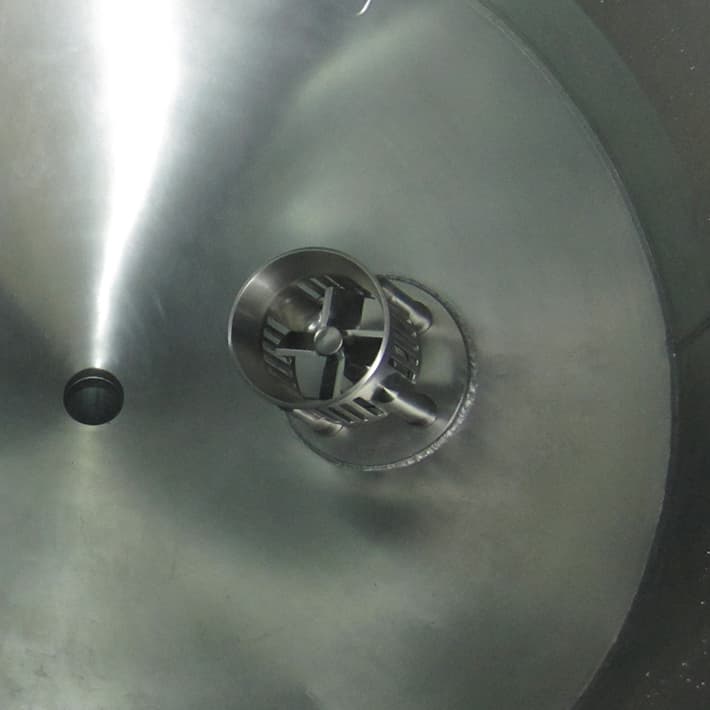

An optional bottom mixer can be added to improve the mixing process, while optional double jacket cooling can be added to better regulate the controlled cooling of your brine.
Upgrade your brine mixing process with the Henneken HVM Brine Mixer!
Henneken HVM Brine Mixers feature:
- Venturi-system mixing
- Easy to remove tubes and valves
- Easy to maintain and easy to clean design
Henneken HVM Brine Mixers can be outfitted with the following options:
- Water dose feeder
- Siemens touch panel control
- Recipe management with batch quantity adjustment
- Weighing system with an exactness of 100 grams
- Electro-pneumatic valves
- Shear pump
- Cleaning ball
- Bottom-entry mixer
- Double pipe heat exchanger for fast and hygienic inline cooling for water, brine, or sauce
Test it with your product in our Innovation Center.
Technical Specs
Length
55.12″
Width
34.65″
Height
55.51″
Model
HVM 650
Volume
650 ltr
Power
1.8 kW
Length
55.12″
Width
34.65″
Height
75.19″
Model
HVM 1000
Volume
1,000 ltr
Power
4.0 kW
Length
66.93″
Width
47.24″
Height
68.89″
Model
HVM 1500
Volume
1,500 ltr
Power
4.0 kW
Length
66.93″
Width
47.24″
Height
88.58″
Model
HVM 2000
Volume
2,000 ltr
Power
4.0 kW
Length
66.93″
Width
47.24″
Height
108.26″
