Style
Standard
Infeed Height
45.33″
Discharge Height
69.17″
Incline Angle
33.4°
Fusion Move
Standard
Auger Conveyors
FUSION MOVE

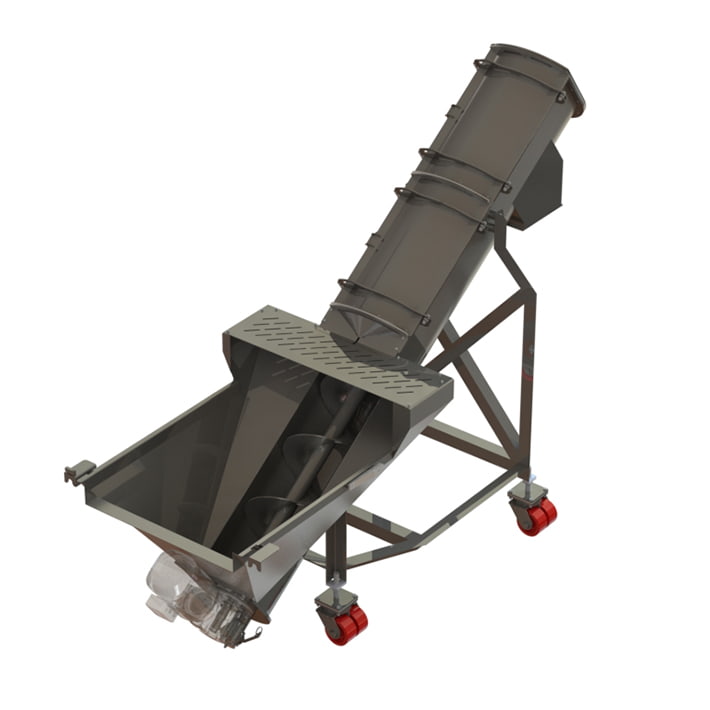

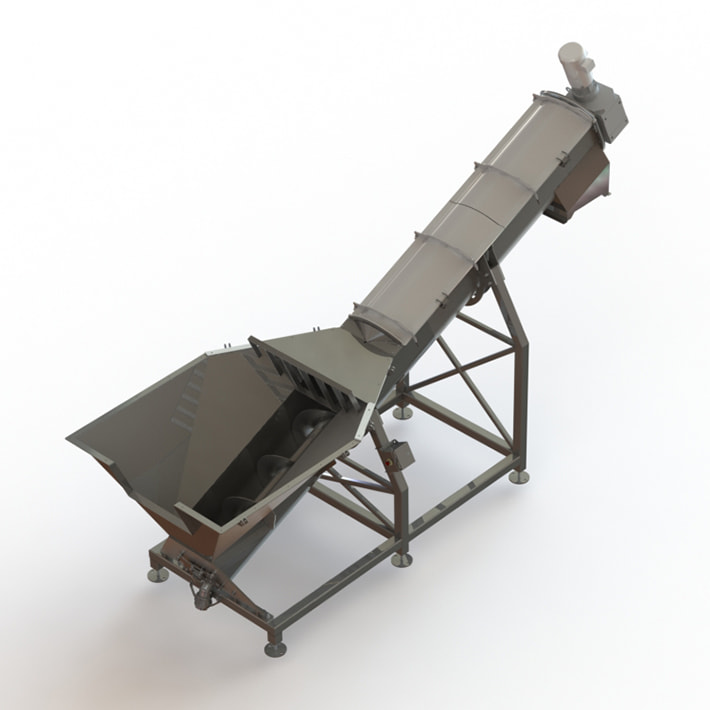

Standard Auger Conveyors
Bulk Conveyance Solution
Suitable for medium to large meat processors looking to move bulk products.
Equipment Overview
Durable and sanitary material handling solutions.
Move a wide range of bulk materials with our standard auger conveyors.
Our standard auger conveyors offer efficiency and versatility, conveying bulk materials ranging from large pellets to sub-micron powders with no separation of blended products.
We can modify one of our standard augers or custom design one to fit your specific needs.
All of our auger conveyors meet AMI guidelines for sanitary design.
Construction
- Stainless Steel Type 304 Construction
- All Seams Fully Seal Welded
- Bead Blast Finish
- Robust Design
- Gear Box Mounting Options
- Control Box Operation Choices
Sanitation
- Hinged Guarding for Easy Cleaning of Auger
- Easy to Clean
- Meets all AMI Sanitary Equipment Design Requirements
Safety
- Lock-Out / Tag-Out Equipped
- Guarding Over all Injury Risk Points
Construction
- Choice of hoppers sizes and styles
- Contoured, solid, or domed grated covers
- Dual screw elevators
- Insulation and cladding
- Thermal screws
- Load cells
- Single or dual agitators
- Bead blast or passivated surfaces
- Heating or chilling jackets
- Reversing horizontal screws
- Mobile or stationary units
- Multi-position discharge chutes
- High capacity loaders
- Pivoting units
- Horizontal, vertical, or incline
- Top or bottom mounted drive
- End, drive, and coupling shafts
- Shafted or shaftless design
Sanitation
- CIP system
Safety
- Open grating covers
- Hinged safety guards
- Safety switches
Download the catalog to learn more about our standard auger conveyors.
Technical Specs
Length
127.79″
Width
53.68″
Height
86.09″
Weight
1,813.05 lbs
Style
Standard
Infeed Height
78.74″
Discharge Height
89.54″
Incline Angle
23.9°
Length
236.71″
Width
77″
Height
131.76″
Weight
5,017.26 lbs
Style
Standard
Infeed Height
59.48″
Discharge Height
84.25″
Incline Angle
35°
Length
175.61″
Width
67.46″
Height
132.27″
Weight
3,895.25 lbs
