Model Number
A-12298
Smoke Production
Up to 20 truck smokehouse
Wood Chip Capacity
100 lbs (qty 2 – 2.32 sq. ft. bags)
Compressed Air
80 psi minimum
Water
40 psi minimum
Fusion Cook
Smoke
Generator
FUSION COOK

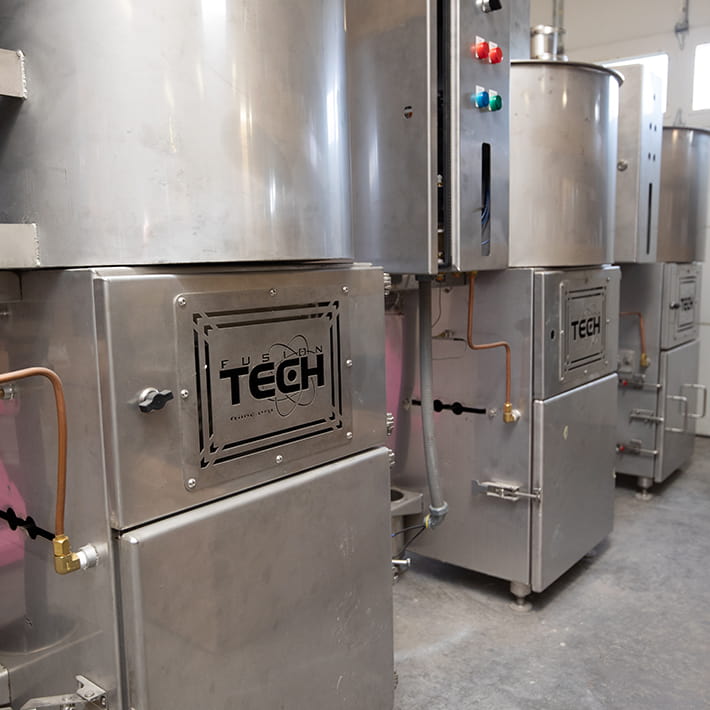

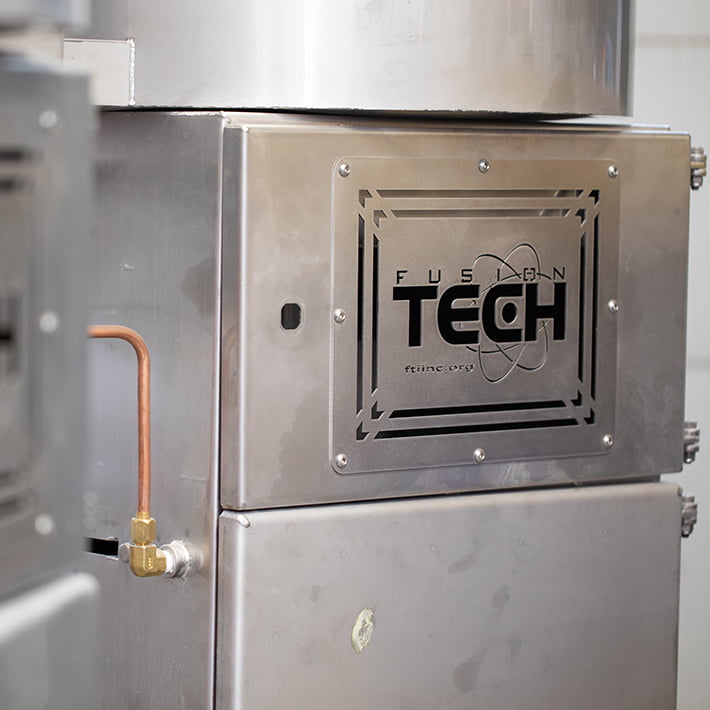

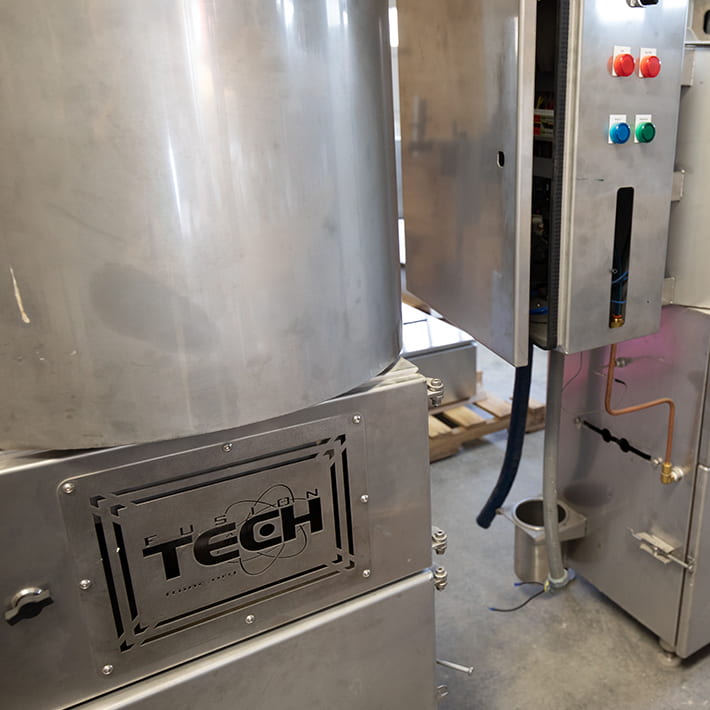

Smoke Generator
Smoke Generating Solution
Suitable for processors looking to generator smoke for up to a 20 truck oven.
Equipment Overview
Generate enough smoke to fill up to a 20 truck oven.
Taste and intensity are key when purchasing a smoke generator and the Fusion Tech Smoke Generator gives you both in one system.
Our smoke generator gives you total control over the intensity and density of the smoke, resulting in a flavor-rich product you won’t be able to get anywhere else.
Tool-less removal of guarding, ash box, smoke drainage catch pan, and an adjustable locking damper make our smoke generator easy to clean and easy to maintain.
You will love the performance of the Fusion Tech Smoke Generator. Your customers will love the flavor it produces.
Upgrade your smoking process with our Smoke Generator.
Construction
- Stainless Steel Construction

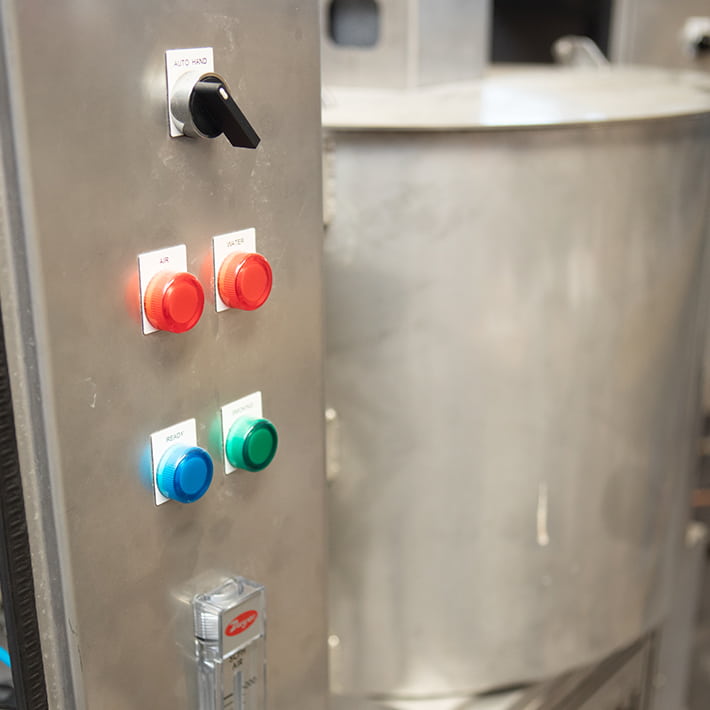

- Automatic or Manual Operation
Safety & Sanitation
- Automatic Fire Suppression System
- Exceeds AMI Sanitary Design Requirements
- Tri-Clamps for Easy Pipe Disassembly and Cleaning

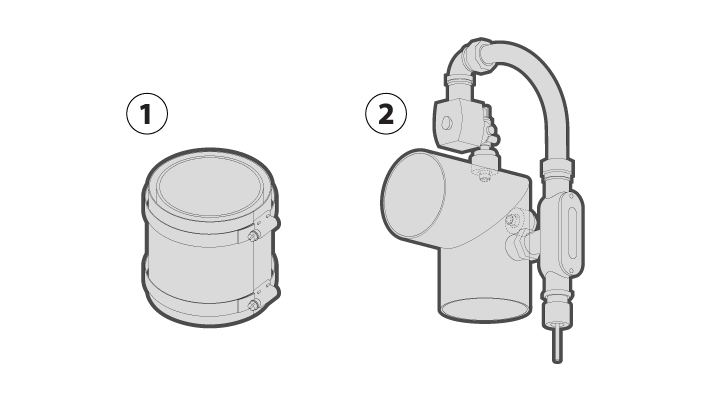

The Fusion Tech Smoke Generator comes with:
- (3) Outlet Tube Couplings
- (1) Fire Suppression Outlet Tube Elbow
Additional piping may be purchased separately (as a set) to aid in connecting the Smoke Generator to your Smokehouse:
- (20) Feet of 4″ x 0.083″ Round Tube with CIP Fittings
- (3) Outlet Tube Couplings
- (1) Standard Outlet Tube Elbow
Test it with your product in our Innovation Center.
Equipment Videos
Technical Specs
Electrical
120v AC 10 60 Hz
Length
42.0″
Width
28.6″
Height
63.09″
Weight
373.69 lbs
