Product
Frozen
Maximum Product Width
28.25″
Maximum Product Length
36.5″
Maximum Product Height
9.05″
Product Temperature Range
-4°F to 10.5°F
Cut Thickness
1mm – 300mm
Noise Level
78 db
Band Saw Motor
10 hp
Table Motor
3 hp
Gripper Motor
1.5 hp
Fusion Cut
RB-1 Automatic
Band Saw
FUSION CUT

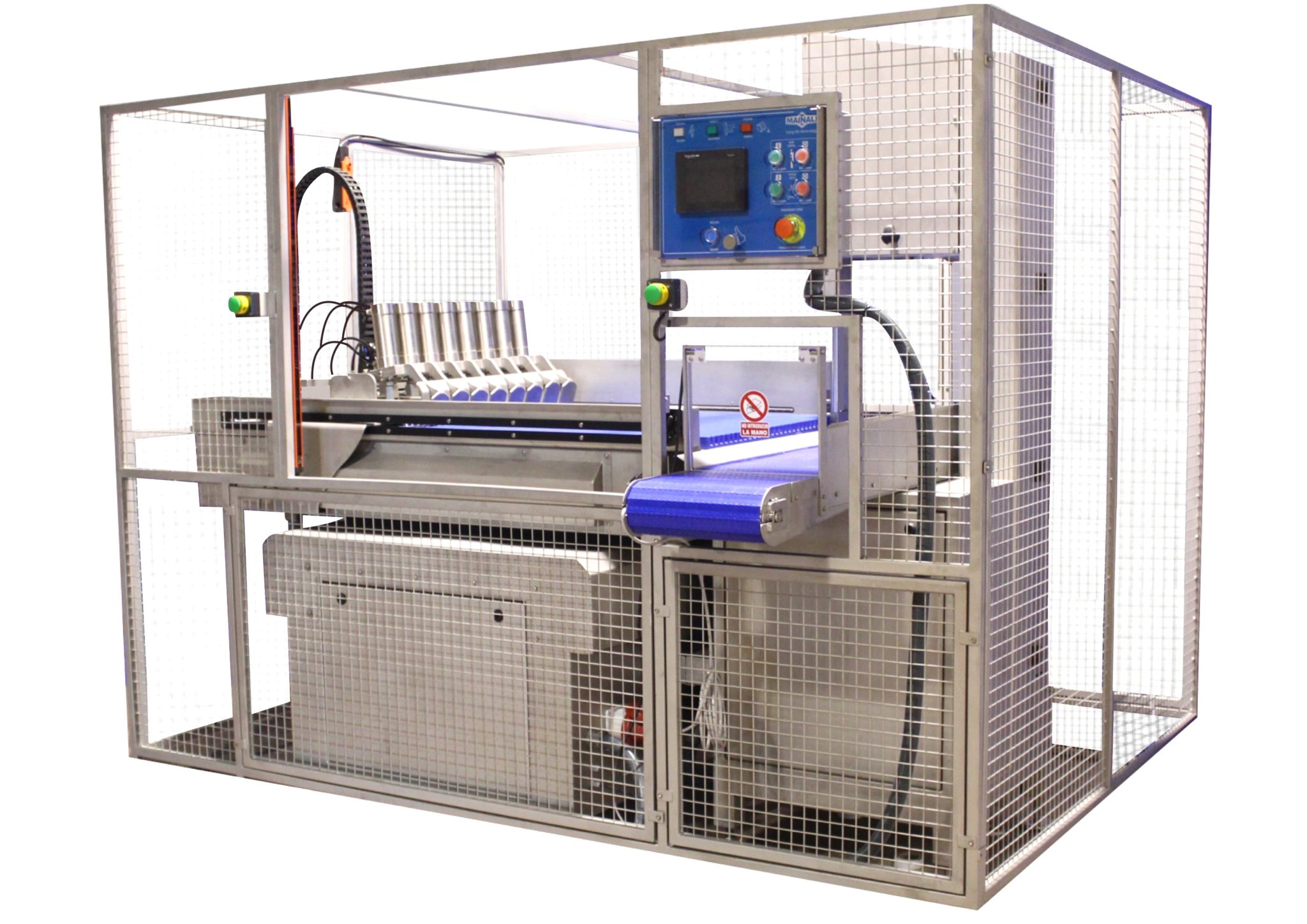

RB-1 Automatic Band Saw
Dry and Frozen Portioning Solution
Suitable for high volume meat processors looking to quickly cut frozen meat.
Equipment Overview
Quickly cut fresh or frozen meat into accurate portions.

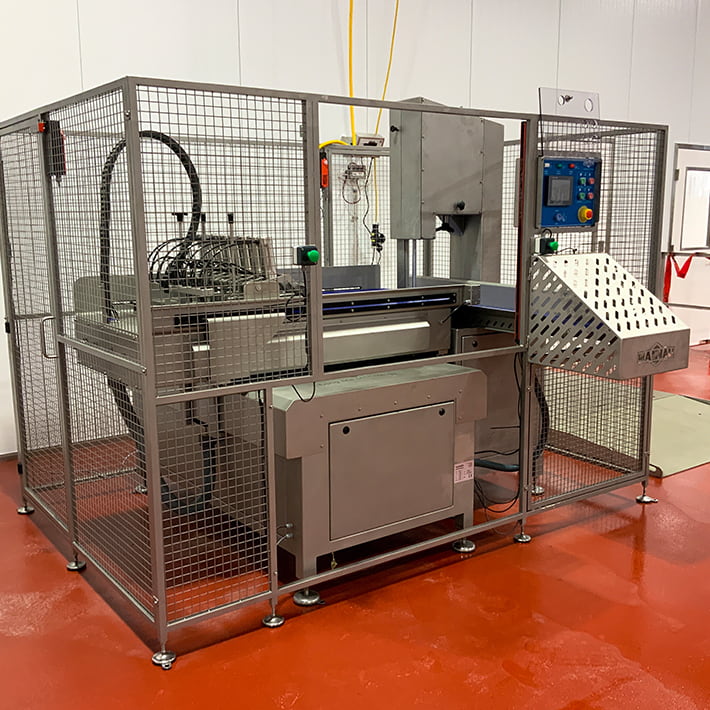

The RB-1 Automatic Band Saw is designed to automatically and safely cut any frozen, chilled, or fresh product into consistent portions. Perfect for meat, poultry, fish, vegetables, and more, the RB-1 is the most accurate and adaptable band saw on the market.

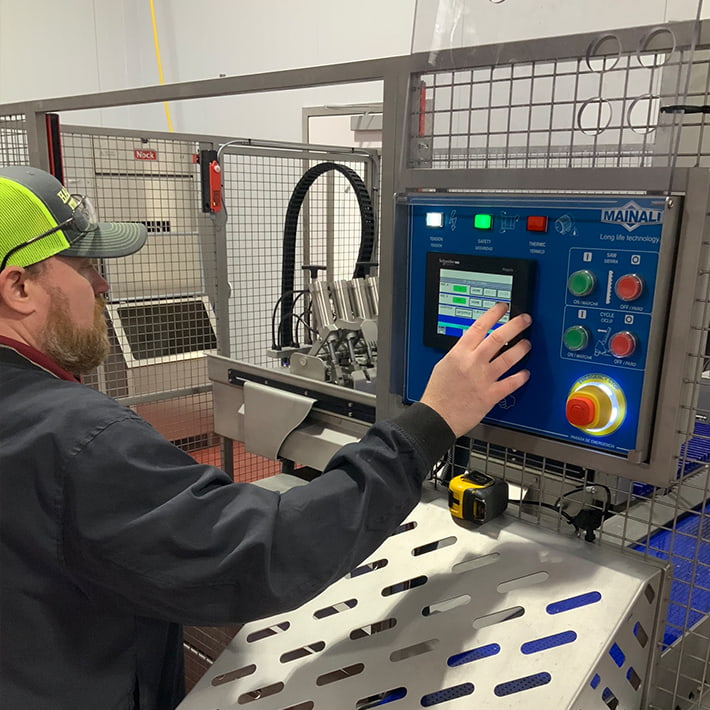

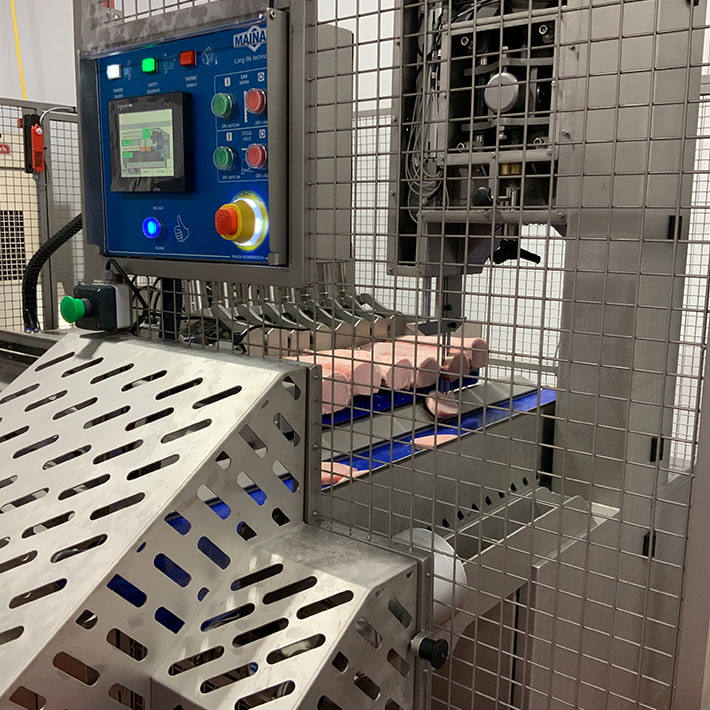

All of the movements of the band saw (cutting thickness, feed, recoil, cutting speed) are programmed into the panel and controlled electronically, allowing for precise and accurate cuts you cannot get anywhere else.
The double cutting action (cutting in both directions) reduces cut time and increases output for frozen products. Fresh requires the single cut.
The Quick Protection System (QPS) keeps operators safe — killing power to the machine when they cross the photoelectric barrier installed in the safety fence.
The RB-1 is easy to use. Simply set the cutting parameters into the control panel and press start. The machine does the rest.
Upgrade the cutting process for your product with the RB-1 Automatic Band Saw.
Construction
- Stainless steel type 304 construction
- All seams fully seal welded
- Easily removable and adjustable saw blades
- Transparent polycarbonate portection cover over control panel
- Robust design
Safety
- Safety gate around the whole machine
- Safety light curtain on loading area
Cleaning / Sanitation
- Wash down components allow for high pressure washing
- Exceeds all AMI Sanitary Design requirements
Automatic
All of the movements of the band saw (cutting thickness, feed, recoil, cutting speed) are programmed into the panel and controlled electronically.
Precise
Machine-controlled cuts eliminate the human error of inaccurate cut thicknesses, giving you precise portions every time.
Employee Safe
The Quick Protection System (QPS) cuts power to the machine when an operator crosses the photoelectric barrier installed in the safety fence.
Adaptable
The holder is designed to the need of each product, allowing you to cut frozen meat, poultry, fish, vegetables, and more on a single machine.
The Mainali RB-1 Automatic Band Saw is perfect for cutting frozen:
- Meat
- Poultry
- Fish
- Vegetables
- And More!
Try it out in our Innovation Center.
Equipment Videos
Technical Specs
Conveyor Belt Motor
0.2 hp
Electrical
220 / 400 / 480v, 3 phase, 50-60 Hz
Compressed Air
Caudal: 60/700 1/min
Pressure: 113.787 psi (8 kg/cm3)
Belt Width
14.25″
Table Dimensions
35.43″ x 27.55″
Length
100.20″
Width
103.15″
Height
74.81″
Weight
3,307 lbs
Product
Frozen or Fresh
Maximum Product Width
28.25″
Maximum Product Length
36.5″
Maximum Product Height
9.05″
Product Temperature Range
Frozen or Fresh
Cut Thickness
1mm – 300mm
Noise Level
78 db
Band Saw Motor
10 hp
Table Motor
3 hp
Gripper Motor
1.5 hp
Conveyor Belt Motor
0.2 hp
Electrical
220 / 400 / 480v, 3 phase, 50-60 Hz
Compressed Air
Caudal: 60/700 1/min
Pressure: 113.787 psi (8 kg/cm3)
Belt Width
14.25″
Table Dimensions
35.43″ x 27.55″
Length
100.20″
Width
103.15″
Height
74.81″
Weight
3,307 lbs
