Capacity
10,000 lbs per hour
Max Product Size
12″ x 12″ x Any Length
Integration
Yes
Certification
USDA
Motor Power
5 hp
Motor Speed
1750 RPM
Fusion Cut
SH-50
Shredder
FUSION CUT
SH-50 Shredder
Industrial Shredding Solution
Suitable for large meat processing facilities looking to produce shredded meat or soy.
Equipment Overview
Achieving a hand-pulled look to your shredded meat is possible with our line of industrial meat shredders.
Large meat processing facilities will love the SH-50 Shredder. This machine is designed to shred up to 10,000 pounds of cooked meat per hour when coupled with an infeed and discharge conveyor.
Our shredders pull the meat fibers apart, rather than cutting or tearing, to give you long, fine looking shredded meat.

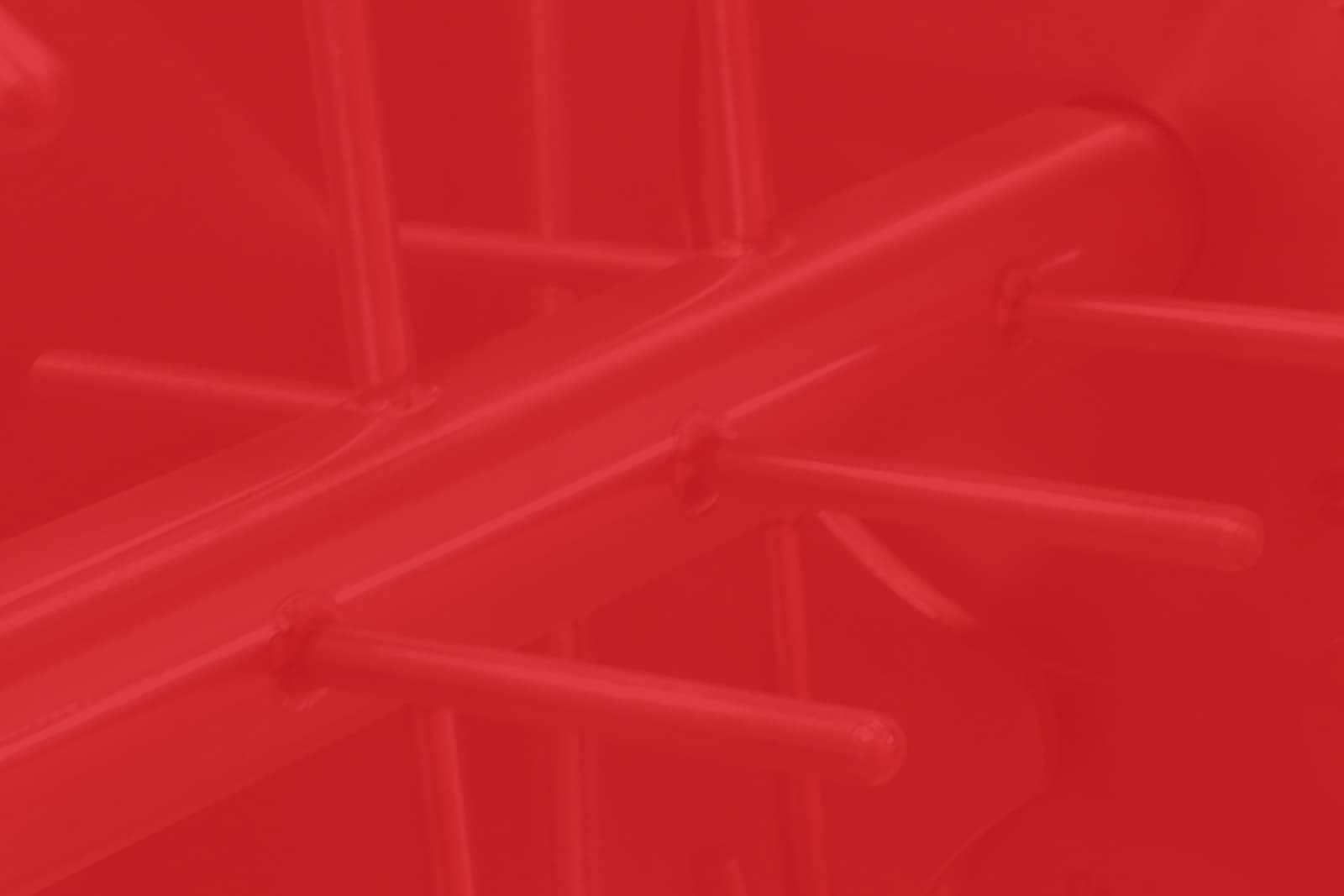

A variable-speed drive allows you to adjust the shred to be finer or coarser, depending on your preference. Or change out the standard shredding shafts for the optional fine shaft.

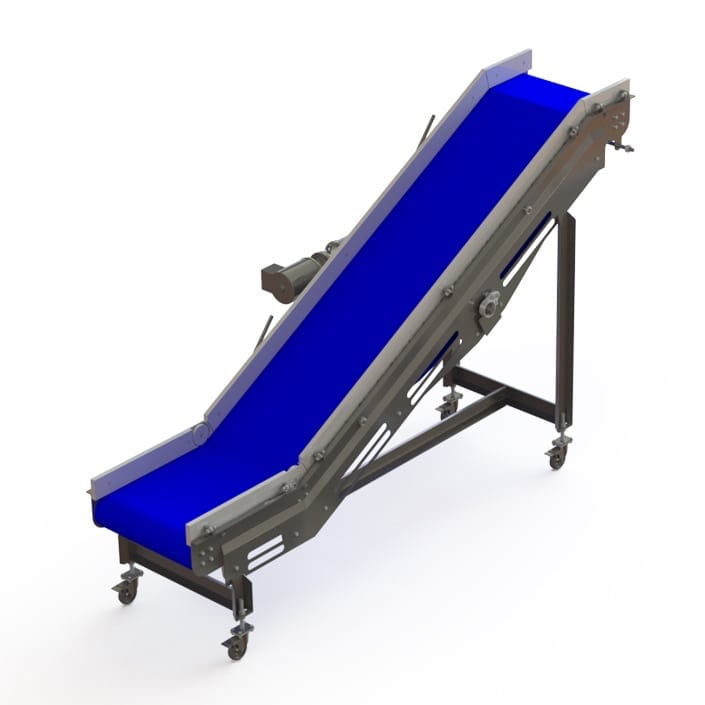

You can choose to upgrade your SH-50 with infeed and discharge conveyors or a hand-fed chute.
Optimize your meat shredding operation with the SH-50 Shredder.
Construction
- Stainless Steel Type 304 Construction
- All Seams Fully Seal Welded
- Robust Design
- Casters for easy moving
- Stand alone control panel
Safety
- Fortress Interlocks Latch to lock panel into place and prevent accidental starting
- Safety Senors located behind each panel and under the discharge chute prevent the machine from running if not secured
Cleaning / Sanitation
- Hinged covers make cleaning the machine easy
- Wash down components allow for high pressure washing
Technical Specs
Length
50.13″
Width
42.19″
Height
74.06″
Electrical Options
230v, 60 Hz, 3 phase, 28 FLA
460v, 60 Hz, 3 phase, 7.6 FLA
575v, 60 Hz, 3 phase, 6.1 FLA
European Options Available
Weight
590.33 lbs
The SH-50 Shredder is efficient, reliable and consistent in delivering high quality shredded products.
David Smyth
Ribworld
Equipment Options
Add-On
