Belt Width – Lanes
10″
Belt Width – Infeed
21″
Top of Belt Height
30″
Fusion Move
Dual Lane
Radius Conveyors
FUSION MOVE
Dual Lane Radius Conveyors
Dual Lane Radius Conveyance Solution
Suitable for food processors needing to discharge products to different machines or lines.
Equipment Overview
Dual lane radius conveyance.

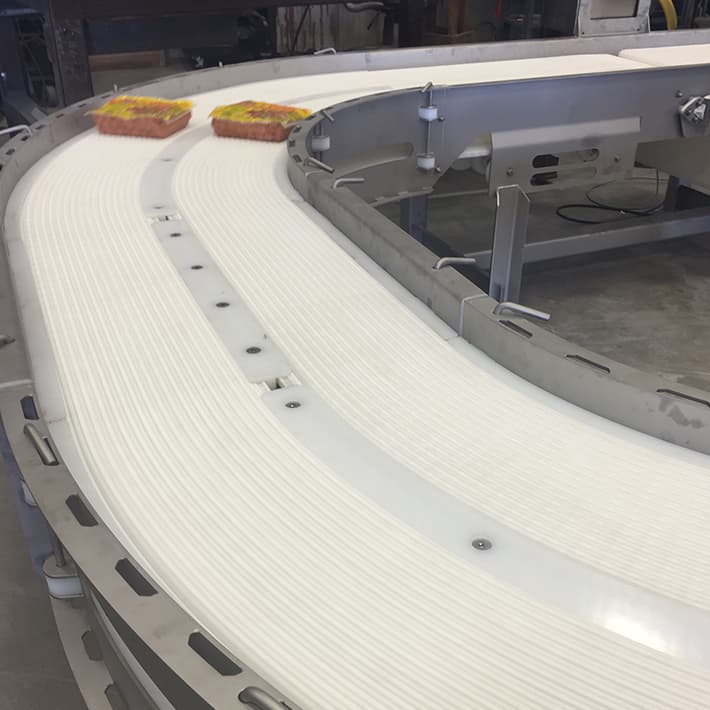

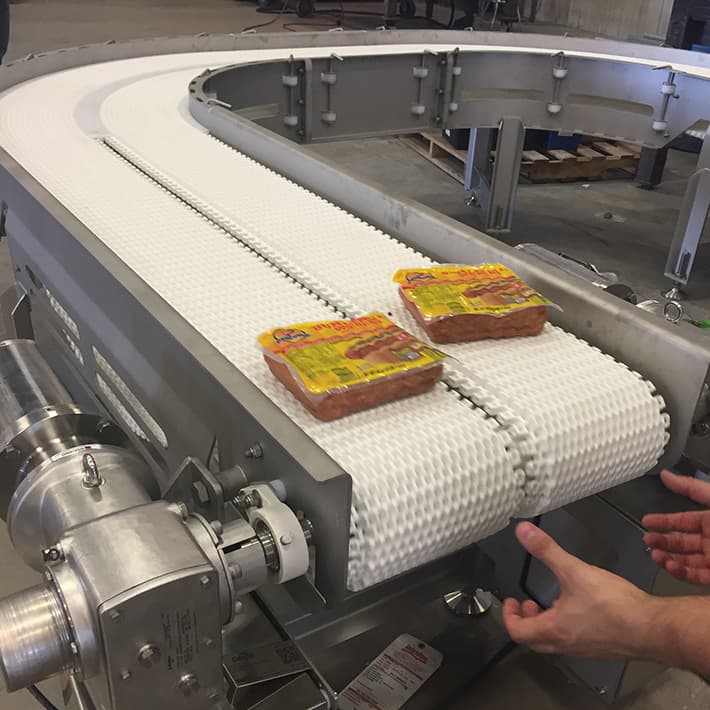

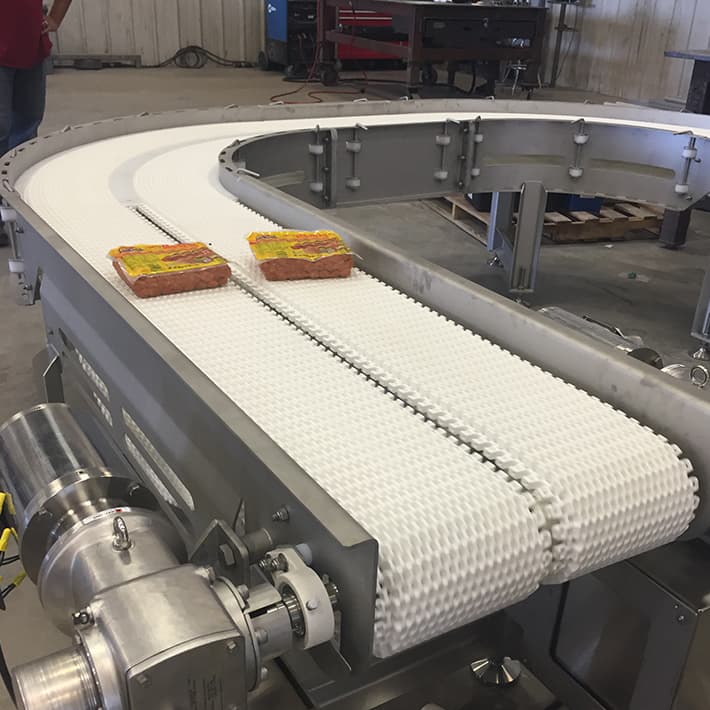

Move two lanes of product discharging to different machines or lines on the same radius conveyor with our dual lane radius conveyors.

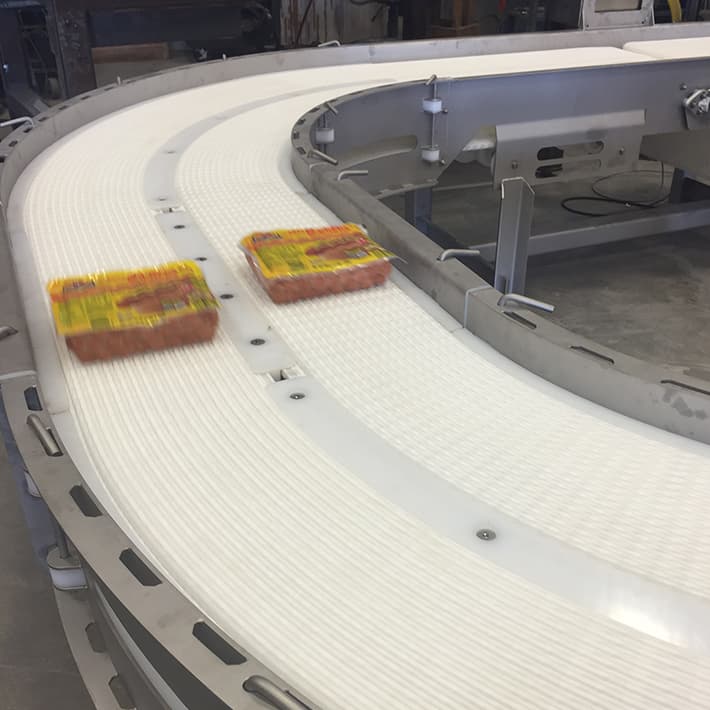

Belt hold-downs are located below the main surface of the belt, preventing your product from catching and losing alignment on the hold-downs.
Outside and inside hold downs are pinned in place for easy replacement should they wear out.
A timed infeed conveyor keeps your products spaced appropriately.
Upgrade your radius conveyance with the Dual Lane Radius Conveyor.
Construction
- Stainless Steel Type 304 Construction
- Below Surface Belt Hold-Downs
- Pinned Hold Downs
- All Seams Fully Seal Welded
- Bead Blast Finish
- Robust Design
Sanitation
- Easy to Clean
- Meets all AMI Sanitary Equipment Design Requirements
Frame Options:
- Formed Sheet Metal
- Angle Iron
Mounting Options:
- Ceiling

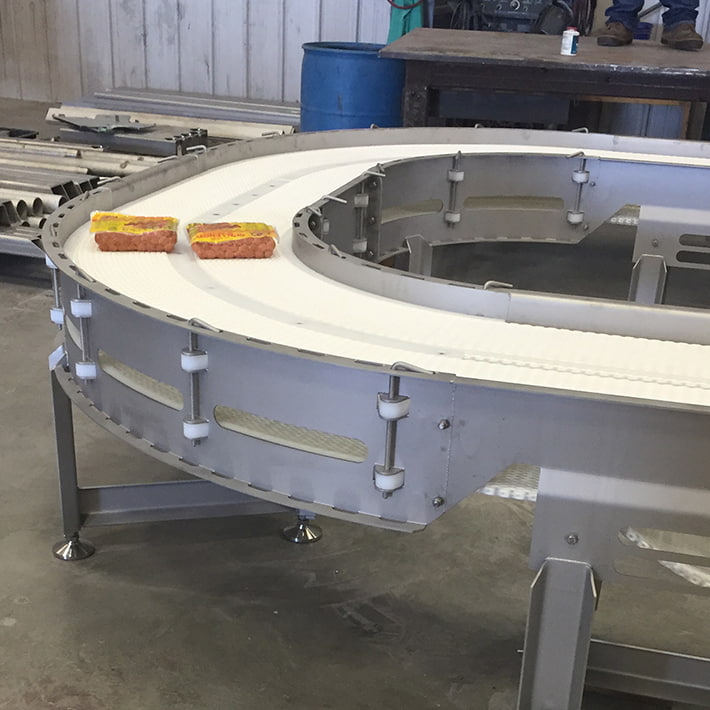

- Footpads
- Casters
Finish:
- Bead Blast
- 2B Finish
- DA Finish
Sanitation:
- Spray Bars
- Belt Scrapers
- Drip Pans
Construction:
- Choice of Gearbox, Motor, Bearings
- Local Control Box
Download the catalog to learn more about our dual lane radius conveyors.
Equipment Videos
Technical Specs
Length
122.93″
Width
118.96″
Overall Height
32.50″
Weight
1,924.17 lbs
