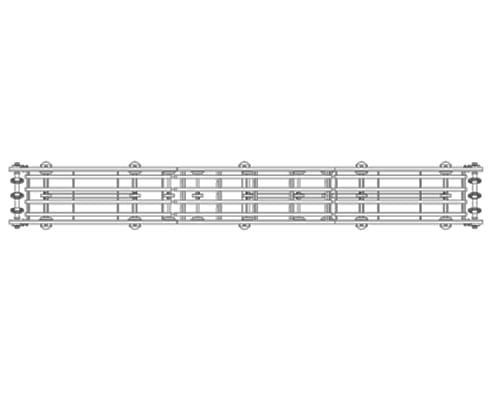

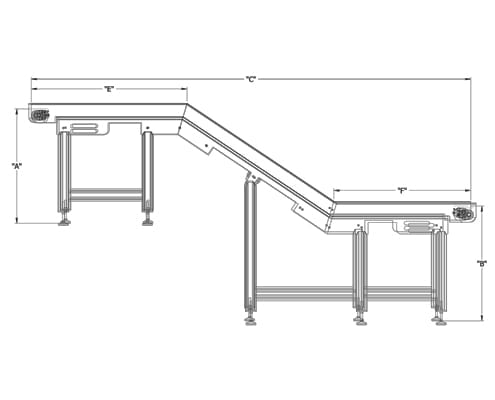

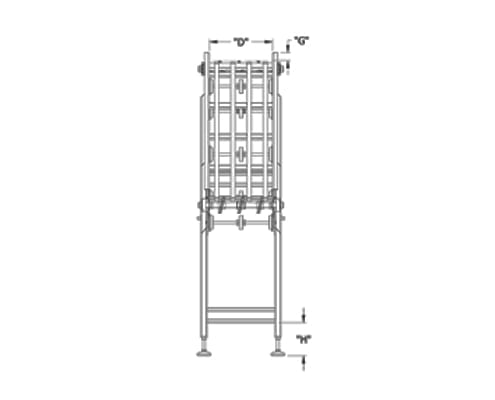

Use the images to the right to reference dimensions.
- A — In-feed Dimension (top of belt)
- B — Discharge Dimension (top of belt)
- C — Length
- D — Width
- E — Upper Flat Belt Length
- F — Lower Flat Belt Length
- G — Side Height (above belt)
- H — Frame Height
Fusion Move
Flat Decline Flat
Conveyors
FUSION MOVE
Flat Decline Flat Conveyors
Flat Decline Flat Conveyance Solution
Suitable for food processors needing to move product.
Equipment Overview
Flat decline flat conveyance.
The Fusion Tech Flat Decline Flat Conveyor is designed to provide a flat to decline conveyance of your product — whether on its own or as part of a larger conveyor system.
This conveyor comes with a variety of options, allowing you to “design your own” and get the conveyor that perfectly fits the needs of your specific application. You can view the options available under the Design Your Conveyor section below.
Constructed of high grade stainless steel, the Flat Decline Flat Conveyor is durable enough to withstand the most demanding environments and last you for years to come.
Each Flat Decline Flat Conveyor is custom made to your requirements and specifications and meet all Sanitary Equipment Design principles.
Fusion Tech conveyors come equipped with a number of standard features designed to for durability, sanitation, and safety.
Sanitary:
- Continuous TIG welds prevent bacteria growth
- Horizontal surfaces minimized
- Angles turned to prevent voids facing down, flat surfaces, or harborage areas
- UHMW standoffs
- Drip pans
Cleanability:
- Belt lifters for quick, easy washdown
- CIP spray bars to maximize cleanability
- Belt scrapers
Construction:
- Captured machined UHMW carryway rails eliminate accidental misplacement or loss of carryways
- Stainless Steel return shafts chrome plated for wear resistance with UHMW return roller
- Food grade belting and compenents
- Adjustable foot pads or casters
- 7-gauge stainless steel construction
- Angle iron or formed sheet metal frames
- Guide rails and starwheels
- Glass bead blast finish
- “Slide-Out” Cross Conveyors – easily accessible
- Optional Adjustable ergonomic stands
Download the catalog to learn more about our flat decline flat conveyors.
Design Your Own
Frame Options:
Choose the style of frame:
- Formed Sheet Metal
- Angle Iron
- Other
Mounting Options:
Choose your mounting option:
- Ceiling
- Floor
- Rigid
- Swivel
- Caster
Finish Options:
Choose your finish:
- Bead Blast
- 2B
- DA
Features:
Choose which features you’d like on your conveyor:
- Belt Lifters
- Spray Bars
- Belt Scrapers
- Drip Pans
- Local Control Box
Belt Options:
Provide any preferred information. If unknown, our experts will help you choose.
- Preferred Brand (if any)
- Dimensions
- Speed (in FPM)
- Cleats
- Cleat Length
- Center to Center Spacing
Gearbox Options:
Provide any preferred information. If unknown, our experts will help you choose.
- Preferred Brand (if any)
- Finish:
- Stainless
- Painted
Motor Options:
Provide any preferred information. If unknown, our experts will help you choose.
- Preferred Brand (if any)
- HorsePower
- RPM
- Voltage
- Variable Speed Drive
- Location on Conveyor
Bearing Options:
Provide any preferred information. If unknown, our experts will help you choose.
- Shaft Diameter
- Bearing Information
- IPTCI
- EDT
- Other
- Finish
- Poly
- Stainless
