Model Number
SPD-L-64
Load Side
Left
Capacity
3,000 lbs
Discharge Height
64″
Discharge Angle
60°
Fusion Move
Side Pivot
Dumpers
FUSION MOVE
Side Pivot Dumpers
Robust and Sanitary Dumping Solution
Suitable for medium to large meat processors looking to move and dump product in tight spaces.
Equipment Overview
Robust and sanitary dumping in tight spaces.
Easily dump product onto conveyors and other processing equipment in tight spaces with our side pivot dumpers.
These dumpers load from the side — 90° from the pivot — giving you robust dumping when floor space is limited.
We offer a number of options including a safety bar, side guards that swing out for easy maintenance and cleaning, safety gates, a dunnage skirt to prevent foreign materials from falling into your product, a vat hold down bar, and extension chutes.
We can even design a completely custom side pivot dumper for you.
Our side pivot dumpers meet all AMI sanitary design guidelines for use in meat processing.
Construction
- Stainless Steel Type 304 Construction
- Nickel Plated Housing Bearings with Stainless Steel Inserts
- All Seams Fully Seal Welded
- Bead Blast Finish
- Epoxy Coated Cylinders
- Robust Design
- Vat Hold Down Bar (see below)
Safety & Sanitation
- Lock-Out / Tag-Out Equipped
- Easy to Clean
- Meets all AMI Sanitary Equipment Design Requirements
Construction
- Stainless Steel Cylinders
- Carriages for Non-Standard Containers and Barrels
- Dunnage Skirt (see below)
- Extendable Discharge Chute (see below)
- Hydraulic Hose Package
Controls & Power Packs
- Controls — Up, Down, Emergency Stop, Disconnect
- Powerpack with Anti-Shake System
- Powerpack for Plug-N-Play
Installation
- Imbed Plates
- Anchoring Package
Download the catalog to learn more about our side pivot dumpers.
Equipment Videos
Technical Specs
Electrical
Depends on controls & powerpack chosen
Overall Height
148.50″
Length
120.60″
Width
78.72″
Height
77.78″
Equipment Add Ons
Dunnage Skirt
Prevents debris from pallet or skid from entering product during the dump cycle.
Safety Bar
Drops down before dump cycle begins to keep employees safe.

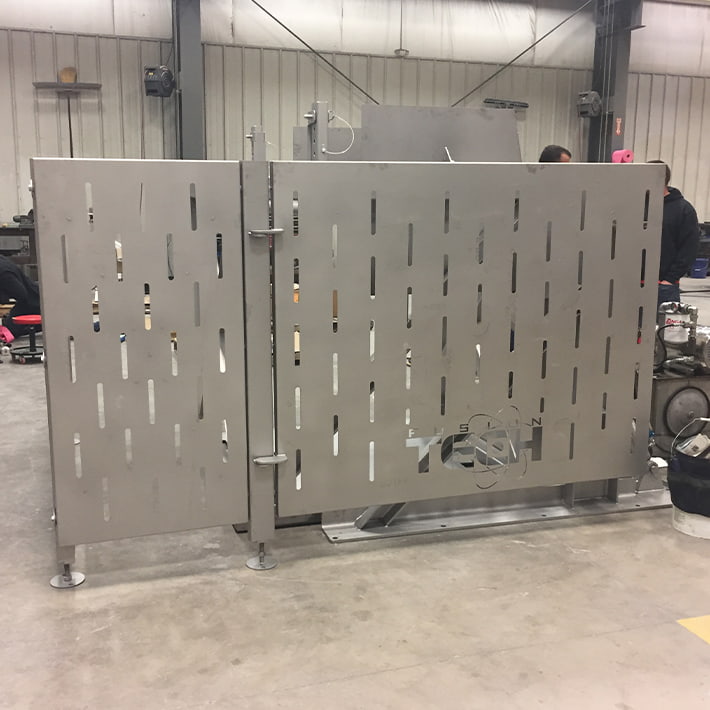

Side Guards
Keep employees clear of sides during the dump cycle. Swing out for easy maintenance and cleaning.
