Model Number
A-10090
Infeed Height
37.43″
Discharge Height
3.19″
Hopper Length
80″
Hopper Width
80″
Fusion Move
Large Capacity
Hoppers
FUSION MOVE
Large Capacity Hoppers
Product Accumulation Solution
Suitable for meat processors looking to accumulate a large amount of product before entering further processing equipment.
Equipment Overview
Robust and sanitary mobile accumulation solution.
Accumulate product before entering OEM equipment with our large capacity hoppers.
We designed these hoppers to hold up to 15,000 pounds of product.
Reinforced and open frameworks make these hoppers durable enough to use in the most demanding environments and easy to clean.
A round discharge makes it easy to pipe product from the hopper into your equipment. The funnel can be customized to fit perfectly with your stuffer infeed tube.
The addition of dimple jacketed sides allows you to pipe hot water within the walls of the hopper, ensuring your product flows well.
Custom sizes and styles are available upon request.
Constructed of high-grade stainless steel, these stuffing hoppers are safe to use in food processing facilities.
Custom Designed
Fusion Tech hoppers can be custom designed to meet the needs of your specific application.
Heavy Duty Construction
Our hoppers feature a heavy duty frame, capable of storing and accumulating high capacities of product.
Robust Design
Our hoppers are designed to be durable enough to withstand the most demanding use.
Sanitary Design
Our hoppers meet all AMI Sanitary Equipment Design requirements, making them easy to clean and safe to use in food processing facilities.
Construction
- Stainless Steel Type 304 Construction
- All Seams Fully Seal Welded
- Bead Blast Finish
- Robust Design
Safety & Sanitation
- Easy to Clean
- Meets all AMI Sanitary Equipment Design Requirements
Download the catalog to learn more about our large capacity hoppers.
Technical Specs
Overall Length
88″
Overall Width
88″
Overall Height
39.06″
Weight
963.45 lbs

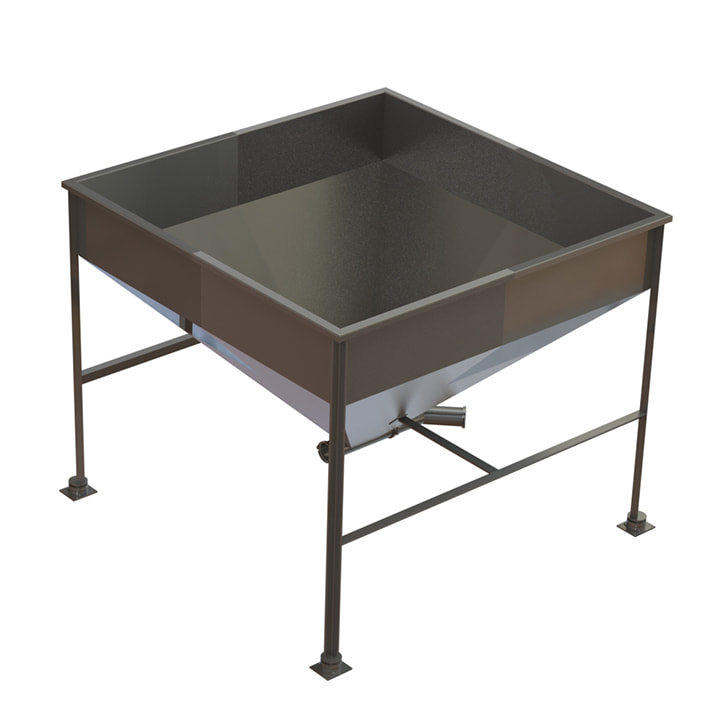

Model Number
A-08948
Infeed Height
106″
Discharge Height
25″
Hopper Length
120.42″
Hopper Width
120.83″
Overall Length
131.27″
Overall Width
132.27″
Overall Height
106″
Weight
1,971.70 lbs

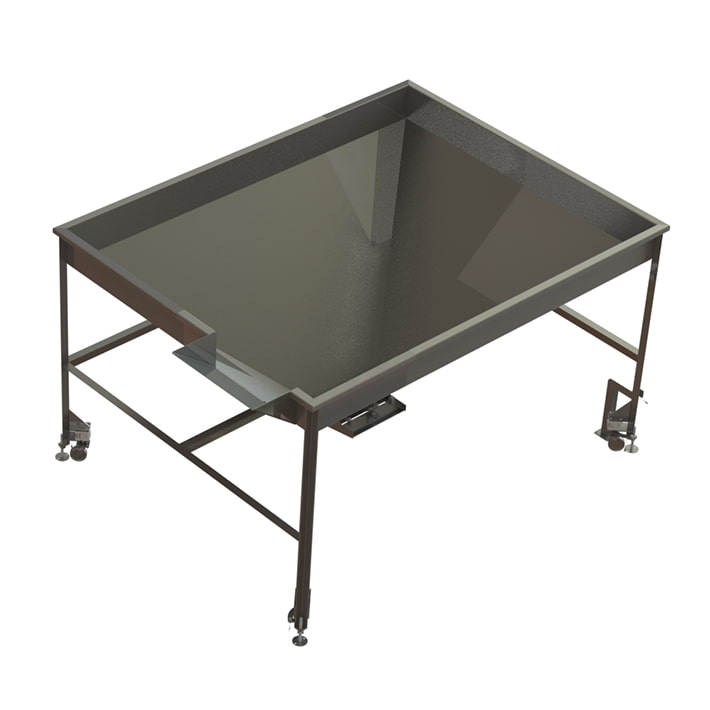

Model Number
A-08946
Infeed Height
94.94″
Discharge Height
17.44″
Hopper Length
120.55″
Hopper Width
156.83″
Overall Length
120.55″
Overall Width
156.83″
Overall Height
94.94″
Weight
1,919.05 lbs
