Brine Injection for Bone-In and Boneless Products
Suitable for a wide variety of products. Available in both belt and walking beam applications.
Improve injection accuracy and consistency.
Henneken brand HPI Brine Injectors are designed to increase weight without pressing or squeezing brine out of your product.

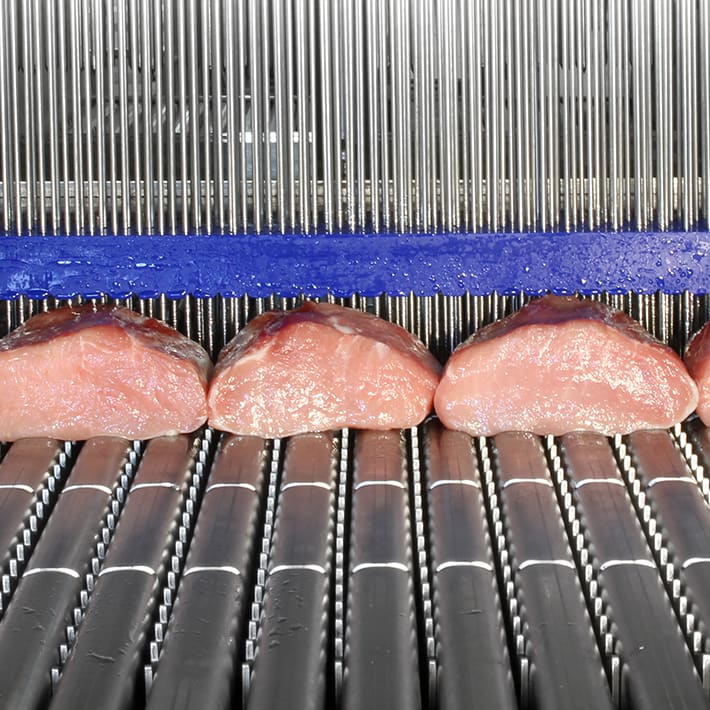

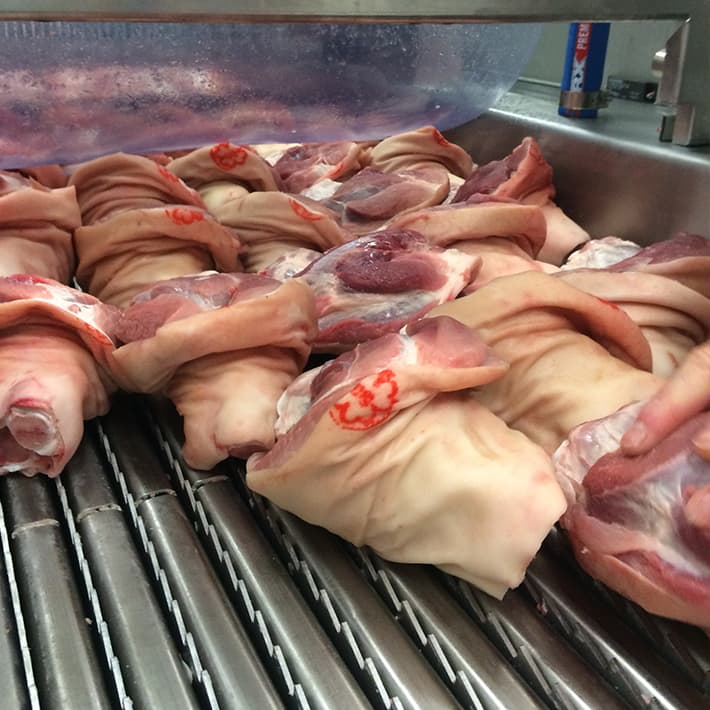

Each needle is individually controlled, giving you greater weight and volume when injecting bone-in product. You won’t have to worry about a set of 4 needles not injecting because a single needle hit a bone. Individual needles mean you get more volume around the bone.

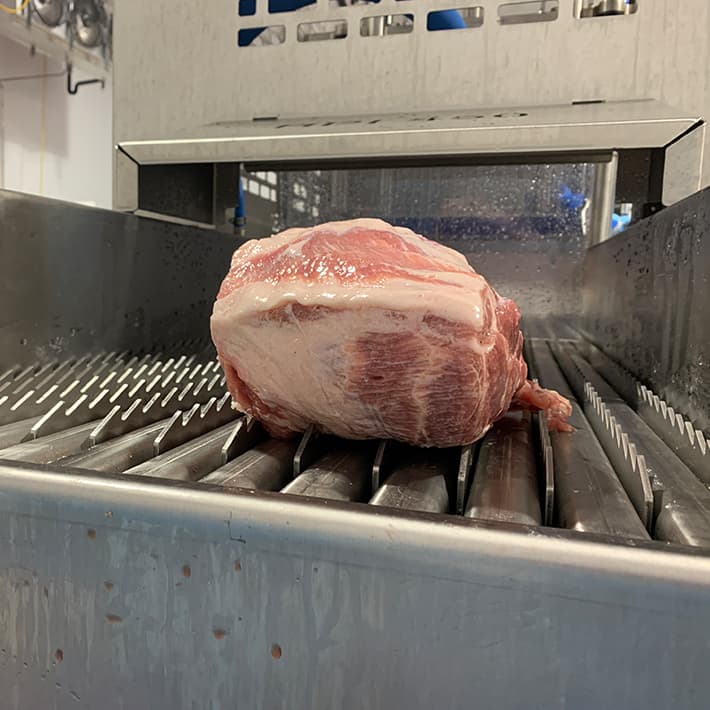

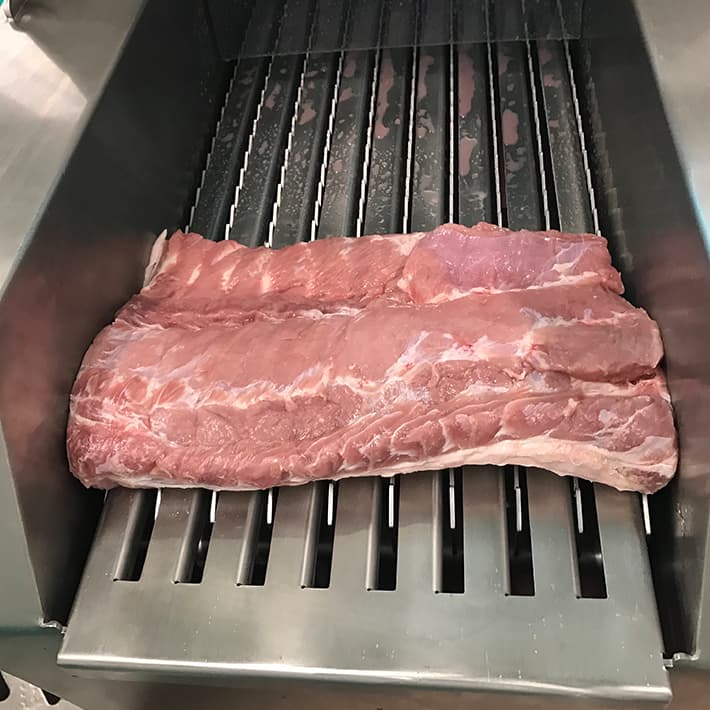

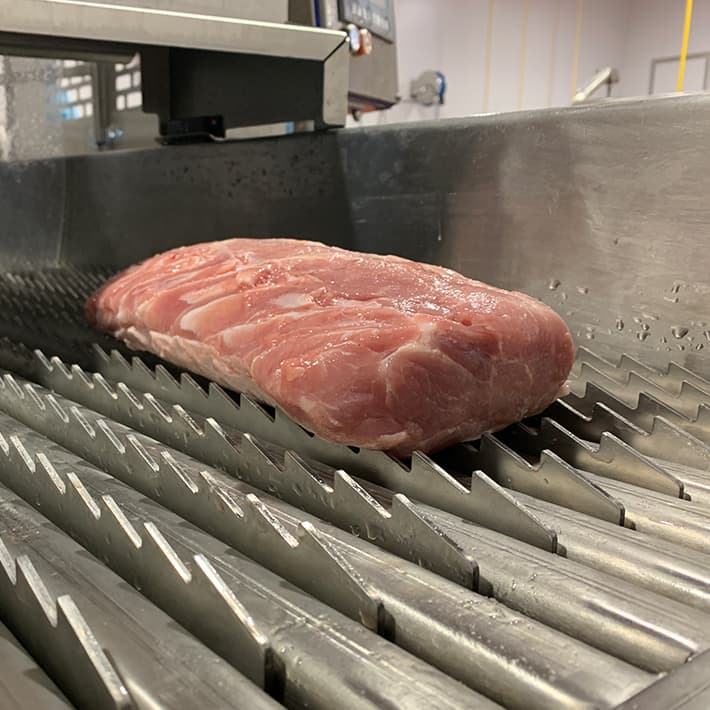

A walking beam system is easier to clean than a conveyor belt and provides for a more consistent injection across every piece of product. Conveyor belts are available in the 450S and 650S versions, should your process require a conveyor belt.
The controls are easy to use, allowing you to adjust stroke speed, beam walk speed, pressure of the injector all from a single touch screen.
The scraper, complete comb, splash guards, sheet attachment, and needles can all be removed without the use of tools, making Henneken brand Brine Injectors easy to clean and easy to maintain.
Optional brine pool, double pipe heat exchanger, cooling and anti sedimentation units round out the offering, giving you complete control over brine injection.
Henneken HPI Brine Injectors feature:
Henneken HPI Brine Injectors can be outfitted with the following options:
Henneken HPI Brine Injectors use single, pneumatic retraction needles that provide more injection coverage than dual or quad-needle set-ups. The brine pressure can be adjusted via the touchscreen.
All needles are easily removable without any tools for easy cleaning. Upgrade to needles with removable caps for even easier cleaning.
We offer different types of needles in 4, 3, 2.5, or 1.9mm sizes in order to meet the requirements of different products.
11.81″ (300mm)
24
N/A
Walking Beam
7.87″ (200mm)
0.5-4
Stroke Speed
50
15
2 kW
59.45″
27.56″
75.98″
837.75 lbs
13.78″ (350mm)
50 or 102
N/A
Walking Beam
7.87″ (200mm)
0.5-4
Stroke Speed
15-55
70
8 kW
75.59″
44.88″
80.71″
1,104.13 lbs
17.71″ (450mm)
108 or 167
216 or 334
Walking Beam
7.87″ (200mm)
0.5-4
Stroke Speed
15-55
120
11 kW
82.28″
55.11″
86.61″
3,086.47 lbs
25.59″ (650mm)
106 or 243
320 or 486
Walking Beam
7.87″ (200mm)
0.5-4
Stroke Speed
15-55
175
18 kW
101.18″
65.75″
86.61″
3,527.39 lbs
17.71″ (450mm)
435
260
Conveyor Belt
1.57″ – 9.05″ (40-230mm)
0.5-4
Stroke Speed
15-55
270
30 kW
1,285.35″
61.02″
88.58″
3,747.86 lbs
25.59″ (650mm)
630
384
Conveyor Belt
1.57″ – 9.05″ (40-230mm)
0.5-4
Stroke Speed
15-55
390
35 kW
1,285.35″
68.90″
88.58″
4,188.78 lbs
In order to keep your brine free from particles, every injector can be equipped with an automatic brine filter tank.
The brine filter tank uses a rotary filter giving you clean and particle free brine with every stroke.
An optional inline filter is available for certain applications.
The glycol tube-in-tube heat exchanges can be added for optional brine temperature control.
