Product
Meat & Poultry
Output Capacity
800 pieces per hour
Flattened Thicknesses
1 – 4.5mm
Maximum Product Width
10.83″
Maximum Pressure
6,600 lbs
Pressing Plate Diameter
11″
Pressing Plate Style
Serrated
Smooth (Optional)
Fusion Process
KT Meat
Press
FUSION PROCESS

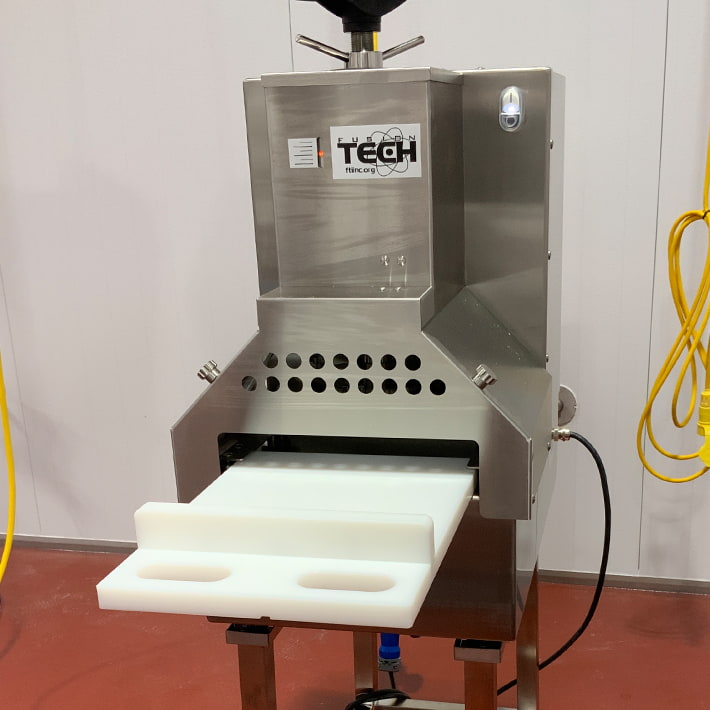

KT Meat Press
Meat Flattening & Separating Solution
Suitable for small meat processors looking to flatten and separate meat and poultry products.
Equipment Overview
Flatten meat and poultry with minimal loss of purge.
The KT Meat Press makes quick work of flattening meat and poultry to provide you with even cooking and greater plate coverage.
Designed to handle pressing 800 steaks per hour at a working pressure of 6,600 pounds, this is the perfect machine for small processors, restaurants, and caterers needing to press meat.
The serrated flattened plate tenderizes meat while it flattens, while the optional smooth plate gives you an untenderized, smooth appearance.

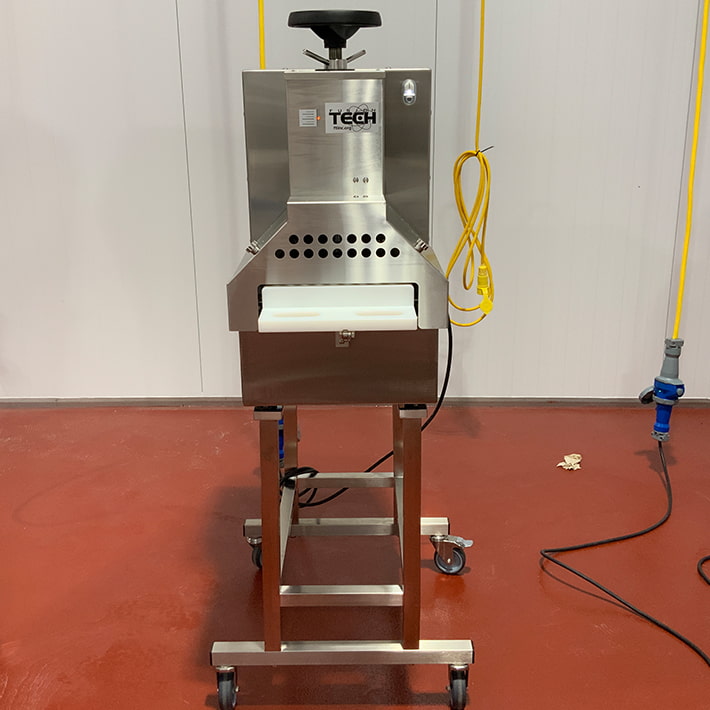

The KT Meat Press is a fraction of the cost of large machines and come with a stainless steel stand with locking wheel system for stability and transportability within your facility.
Construction
- Stainless steel type 304 construction
- Handwheel allows for manual adjustment of pressure
- UHMW tray
- Tool-less inspection and cleaning
- Plug N’ Play design
Safety
- Safety guard prevents hands from entering the pressing area
Cleaning / Sanitation
- Wash down components allow for high-pressure washing
- Exceeds all AMI Sanitary Design requirements
Semi-Automatic
Mechanical meat press that quickly flattens fresh or chilled meat without loss of juices or weight.
All Meat Types
Poultry, beef, pork or veal and small to medium production operations.
Uniform Look
Patented design ensures meat retains flatness indefinitely. Uniform thickness ensures even cooking and greater plate coverage for optimal presentation.
Test it with your product in our Innovation Center.
Equipment Videos
Technical Specs
Motor Power
1.5 hp
Motor Speed
1,750 RPM
Electrical
220v / 3 phase / 3 FLA
Length
16.69″
Width
28.74″
Height
32.09″
Weight
385 lbs
