Fusion Cut

MIXER GRINDERS

Consistency & Performance

Request A Quote
Download Catalog

Mixer Grinders

Save time and money by mixing and grinding in one machine.

Fusion Tech Mixer Grinders are designed to quickly and easily grind fresh meat, although they may be used for grinding various other products as well.

Due to the precise adjustment of motor and components, these grinders are reliable, maintenance-free, and enjoy a long service life.

Our Mixer Grinders both minces the meat and mixes the meat and are great for preparing sausages. The holes in the lid allow you to monitor the mixing and feed the required additives to the minced meat without stopping the machine.

Options include a manual minced meat dosing feeder, filling tubes of different sizes for filling sausage skins, and a foot pedal switch.

Little to No Maintenance
Our grinders are designed to require little to no regular maintenance.

Heavy Duty Construction
Our grinders feature heavy duty, stainless steel components, capable of grinding large capacities each hour.

Robust Design
Our grinders are designed to be durable enough to withstand the most demanding use.

Sanitary Design
Our grinders meet all AMI Sanitary Equipment Design requirements, making them easy to clean and safe to use in food processing facilities.

Fusion Tech Grinders come equipped with a number of standard features designed to for durability, sanitation, and safety.

Construction

  • Stainless Steel Type 304 Construction
  • All Seams Fully Seal Welded
  • Robust Design

Safety & Sanitation

  • Safety Switches Prevent Operation if Not Closed
  • Easy to Clean
  • Meets all AMI Sanitary Equipment Design Requirements

Fusion Tech Grinders are available with two cutting systems:

Enterprise
Short grinding house, one hole plate, one knife, meat must be ground twice. Used in America.

Unger
Long grinding house, 5-part cutting set, meat must be ground once. Used throughout Europe.
Unger systems can be special ordered.

Download the catalog to learn more about our mixer grinders.

Download Catalog
ground meat grinders

Low Maintenance

Our mixer grinders require little to no maintenance.

mixer grinder grinders

Easy to Clean

Tool-less guarding and wash down components make these mixer grinders easy to clean.

ground meat grinders

Large Hoppers

Our mixer grinder hoppers hold up to 24 gallons of meat for high capacity grinding.

Equipment Videos

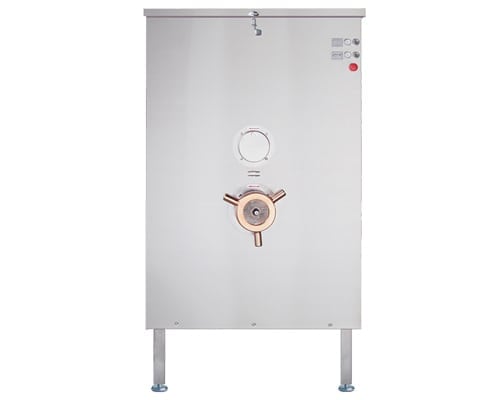

LM-42A Mixer Grinder

LM-32A Mixer Grinder

Technical Specs

Cutting System

Enterprise

Voltage

220/60/3 or 400/50/3

Grinding Motor

3 kW

Mixing Motor

Uses Grinding Motor

Grinding Capacity

1,455 lbs per hour

Hopper Capacity

8.80 gallons / 40 liters

Length

31.30″

Width

25.98″

Height

45.67″

Hole Plate Diameter

3.27″

Weight

396.83 lbs

Cutting System

Unger

Voltage

220/60/3 or 400/50/3

Grinding Motor

3 kW

Mixing Motor

Uses Grinding Motor

Grinding Capacity

1,455 lbs per hour

Hopper Capacity

8.80 gallons / 40 liters

Length

32.68″

Width

25.98″

Height

45.67″

Hole Plate Diameter

3.23″

Weight

401.24 lbs

Cutting System

Enterprise

Electrical

220v/60hz/3 phase or 400v/50hz/3 phase

Grinding Motor

3 kW

Mixing Motor

1.1 kW

Grinding Capacity

2,535 lbs per hour

Hopper Capacity

17.60 gallons / 80 liters

Length

36.22″

Width

28.54″

Height

46.06″

Hole Plate Diameter

3.94″

Weight

507.06 lbs

Cutting System

Unger

Electrical

220v/60hz/3 phase or 400v/50hz/3 phase

Grinding Motor

3 kW

Mixing Motor

1.1 kW

Grinding Capacity

2,535 lbs per hour

Hopper Capacity

17.60 gallons / 80 liters

Length

37.40″

Width

28.54″

Height

46.06″

Hole Plate Diameter

3.86″

Weight

513.68 lbs

Cutting System

Enterprise

Electrical

220v/60hz/3 phase or 400v/50hz/3 phase

Grinding Motor

7.5 kW

Mixing Motor

1.1 kW

Grinding Capacity

3,527 lbs per hour

Hopper Capacity

24.20 gallons / 110 liters

Length

43.31″

Width

28.54″

Height

51.57″

Hole Plate Diameter

5.12″

Weight

837.76 lbs

Cutting System

Unger

Electrical

220v/60hz/3 phase or 400v/50hz/3 phase

Grinding Motor

7.5 kW

Mixing Motor

1.1 kW

Grinding Capacity

3,527 lbs per hour

Hopper Capacity

24.20 gallons / 110 liters

Length

45.87″

Width

28.54″

Height

51.57″

Hole Plate Diameter

5.12″

Weight

848.78 lbs

Cutting System

Enterprise

Electrical

220v/60hz/3 phase or 400v/50hz/3 phase

Grinding Motor

7.5 kW

Mixing Motor

1.1 kW

Grinding Capacity

3,527 lbs per hour

Hopper Capacity

615 lbs

Length

44.88″

Width

40.55″

Height

64.96″

Hole Plate Diameter

5.12″

Weight

848.78 lbs

Cutting System

Unger

Electrical

220v/60hz/3 phase or 400v/50hz/3 phase

Grinding Motor

7.5 kW

Mixing Motor

1.1 kW

Grinding Capacity

3,527 lbs per hour

Hopper Capacity

615 lbs

Length

44.88″

Width

40.55″

Height

64.96″

Hole Plate Diameter

5.12″

Weight

848.78 lbs

Equipment Options

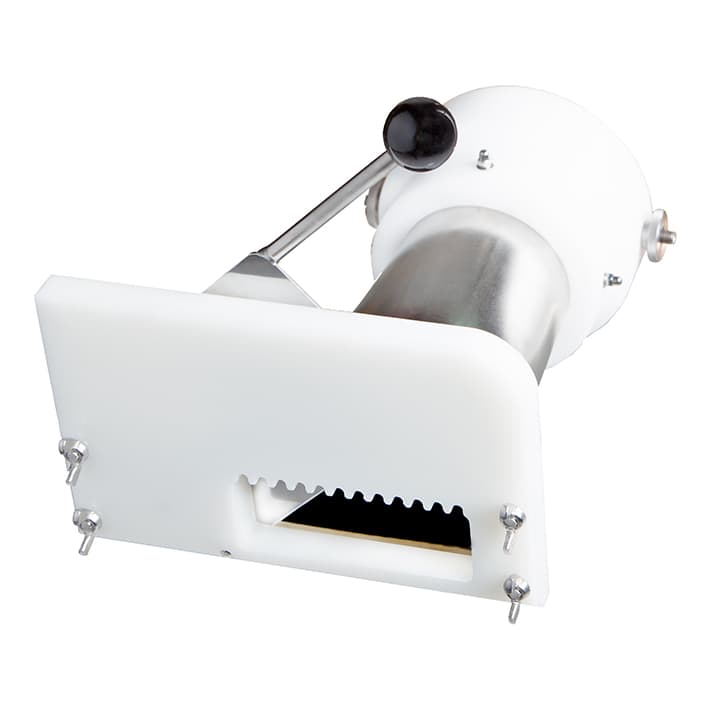

mixer grinder flat meat former

Brick Meat Former

Forms meat into a tight brick for packaging. Manual cutting.

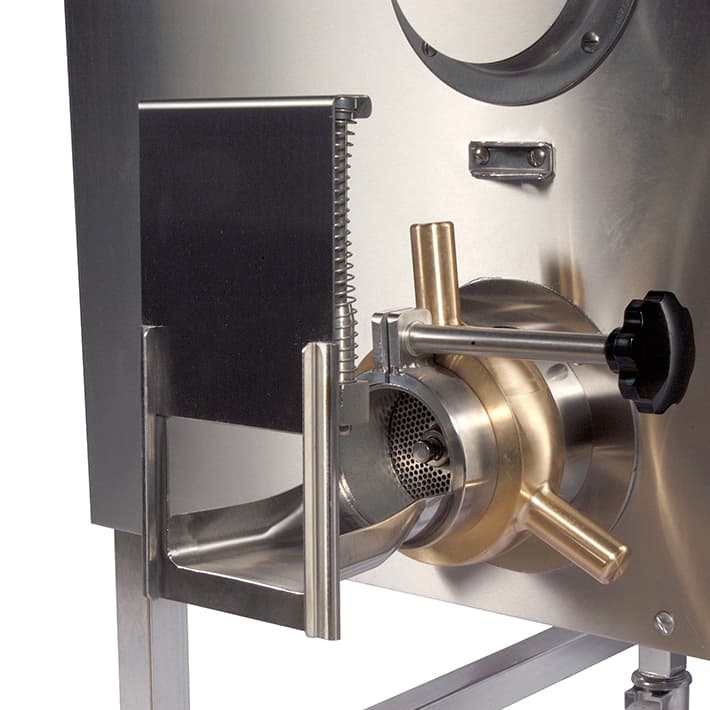

mixer grinder curly meat former

Curly Meat Former

Forms meat into a curly and loose brick for packaging. Manual cutting.

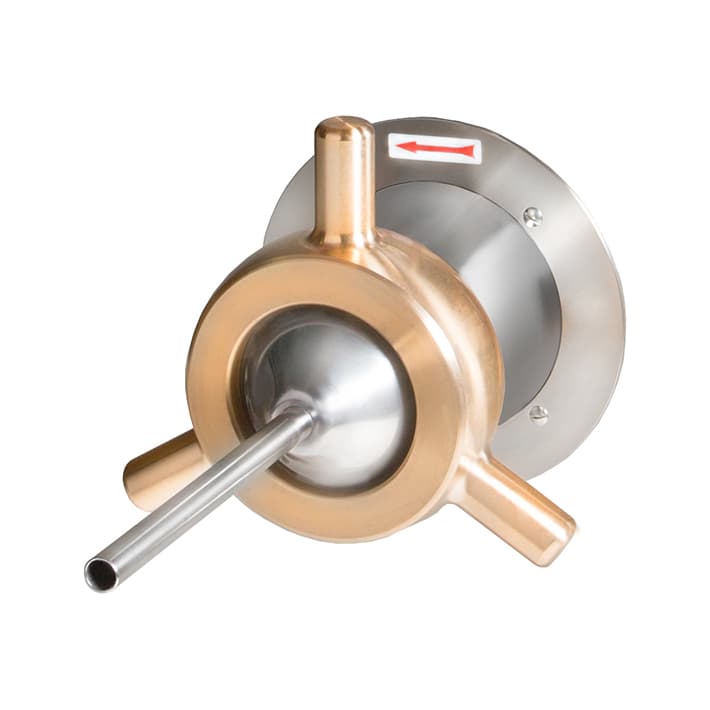

mixer grinder filling tube

Filling Tubes

Fill sausage casings with this adapter. Multiple diameters are available.

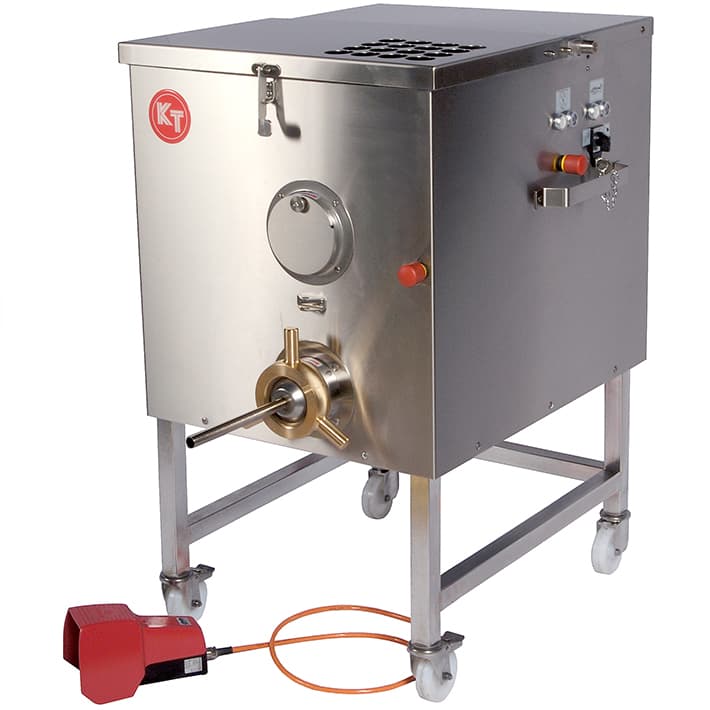

mixer grinder foot pedal

Foot Pedal Switch

Operate the grinder with an optional footswitch.
