Side Pivot Dumpers

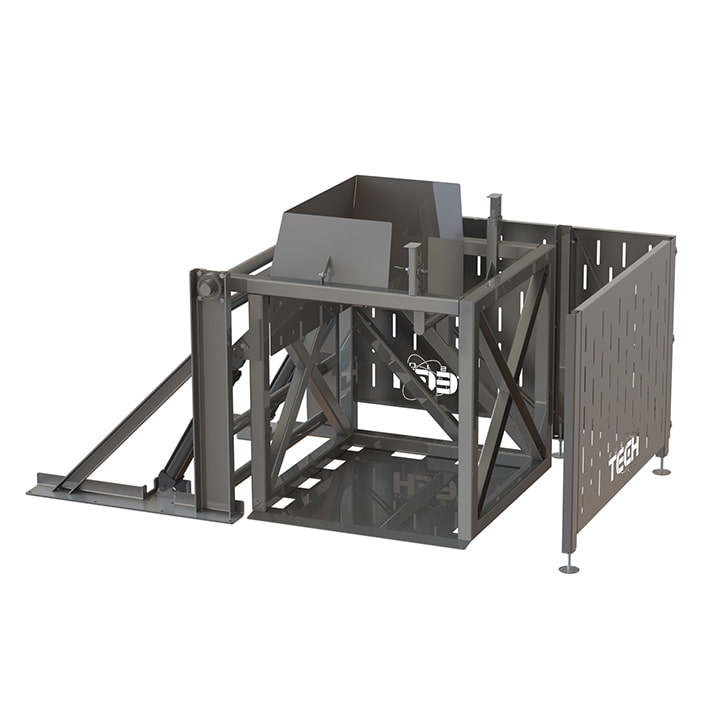

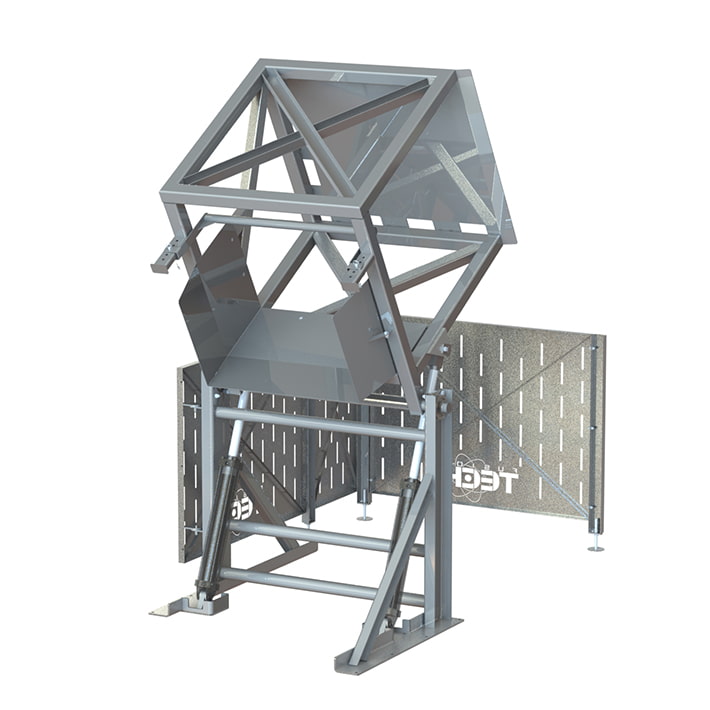

Fusion Tech Side Pivot Dumpers are designed to provide dumping capabilities in tight spaces by loading from the side. The model in the picture dumps product to the left of the dumper platform. Right side dumps available.

Our Side Pivot Dumpers come standard with a number of features, including: chutes to guide product when dumping, guarding to keep employees safe when the dumper is in operation, and heavy duty hydraulic cylinders to handle heavy dumping needs. It is capable of dumping product from bins, vats, or pallets.

Constructed of high grade stainless steel, our Side Pivot Dumpers meet all sanitary design requirements, making it safe for use in food processing facilities.

Download the Fusion Move catalog to learn more about our sanitary conveyors.

Standard Sizes

Model #FootprintDischarge Height (DH)Overall Height (OH)Discharge Angle (DA)Load Side
SPD-L-6478.72″w x 120.60″l x 77.78″h64″148.50″60°Left

Pivot dumpers can be custom designed to meet the footprint, discharge height, overall height, discharge angle, and cylinder stroke you need.

Options

Available on all Fusion Tech dumpers. Options shown on our pivot dumpers.

1
pivot dumpers dunnage skirt
1

Dunnage Skirt

Prevents debris from pallet or skid from entering product during the dump cycle.

Dunnage Skirt

1
1

Safety Bar

The safety bar drops down before the dump cycle begins to keep employees out of the operating zone.

Safety Bar

1
1

Side Guards

Side guards keep employees away from the sides of the dumper during the dump cycle. Guards swing out for easy access during maintenance and cleaning.

Side Guards

1
1

Safety Gate

The safety gate utilizes the side guards and adds two gates in front of the dumper to keep employees at a safe distance during the dump cycle. Guards swing out for easy access during maintenance and cleaning.

Safety Gate

Features

Fusion Tech Side Pivot Dumpers come with a number of design and sanitation features that add value to your facility and processing operation.

Click on each number to learn more about our Side Pivot Dumpers.

1
2
3
4
5
side pivot dumpers
1

Vat Hold Down Bar

Locks vat into place to prevent movement during the dumping cycle.

2

Product Chute

Allows for more control over product movement during the dump cycle and proper placement into hopper.

3

Dumper Cylinders

Heavy duty epoxy coated cylinders provide years of dumping use.

4

Robust Design

Every aspect of our pivot dumpers is designed to withstand the most demanding environments.

5

Side Guards

Side guards keep employees away from the sides of the dumper during the dump cycle.
