FUSION BUILD

Trench and Slot Drains

Stainless Steel Drainage Solution

Suitable for food processors looking for a sanitary trench or slot drain solution.

Request A Quote Download Catalog

Equipment Overview

Sanitary and robust trench drains.

Fusion Tech trench and slot drains are the perfect choice for use in food processing plants where a trough drain is required and where sanitation is of prime concern. Constructed of high grade stainless steel with a full round bottom, these trench and slot drains are easy to clean and comply with sanitary design standards.

Our trench and slot drains are available in a wide variety of sizes, and come with a number of options for the top grate. These trench and slot drains are durable enough to meet the most demanding environments.

Each trench and slot drain is custom made to your requirements and specifications and meets all Sanitary Equipment Design principles.

  • Custom designed for your application
  • 304 or 316 stainless steel construction
  • 1/4″ pitch / foot of slope
  • Full round bottom (no square corners for easy cleaning)
  • Exceeds AMI Sanitary Design requirements
  • Multiple configurations for top grate
  • Stainless steel drain basket
  • GripTECH™ anti-slip coating available

View The Technical Specs

Download the catalog to learn more about our drains.

Download Catalog

Technical Specs

Style

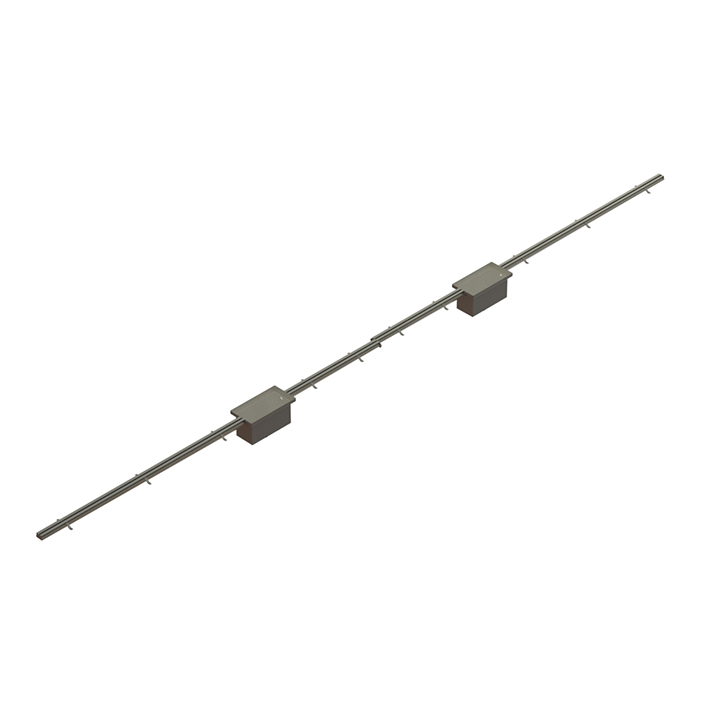

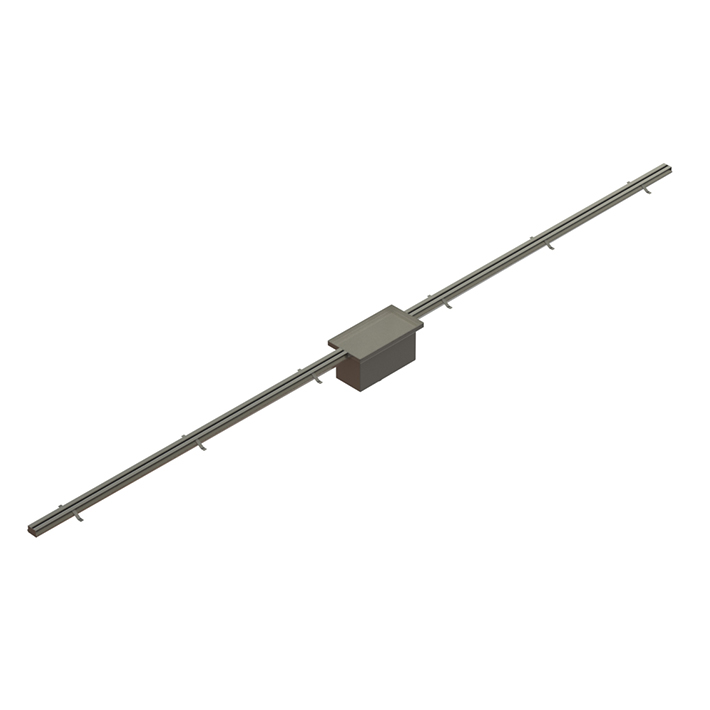

Slot Drain

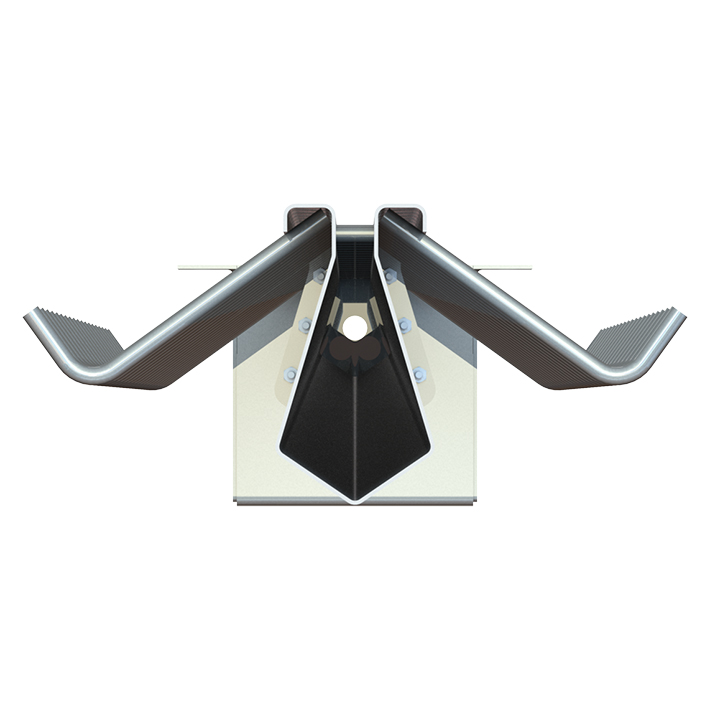

a-11367 trench drain

Model

A-11367

Opening Width

1.21″

Overall Width

4.79″

Depth

6.47″

Style

Trench Drain

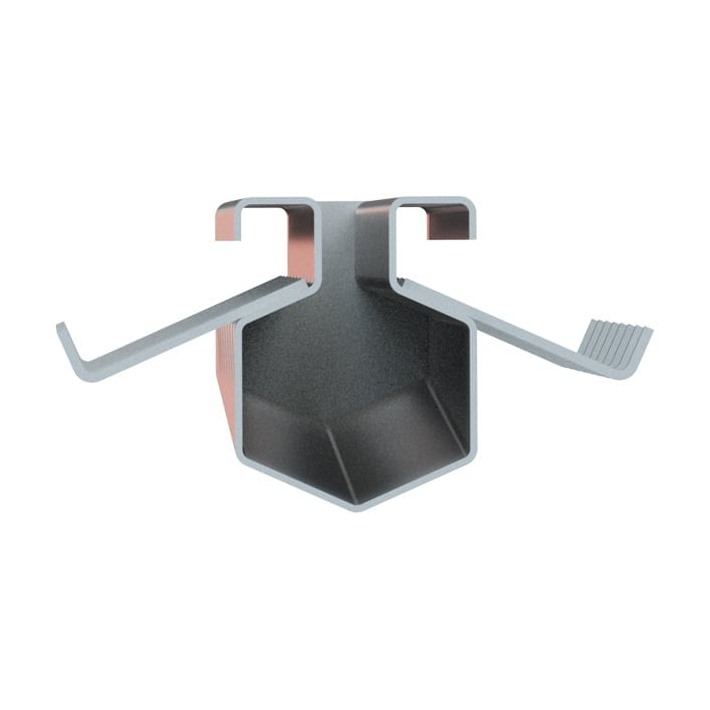

A-01428 trench drain

Model

A-01428

Opening Width

2.45″

Overall Width

5.86″

Depth

6.10″

Style

Trench Drain

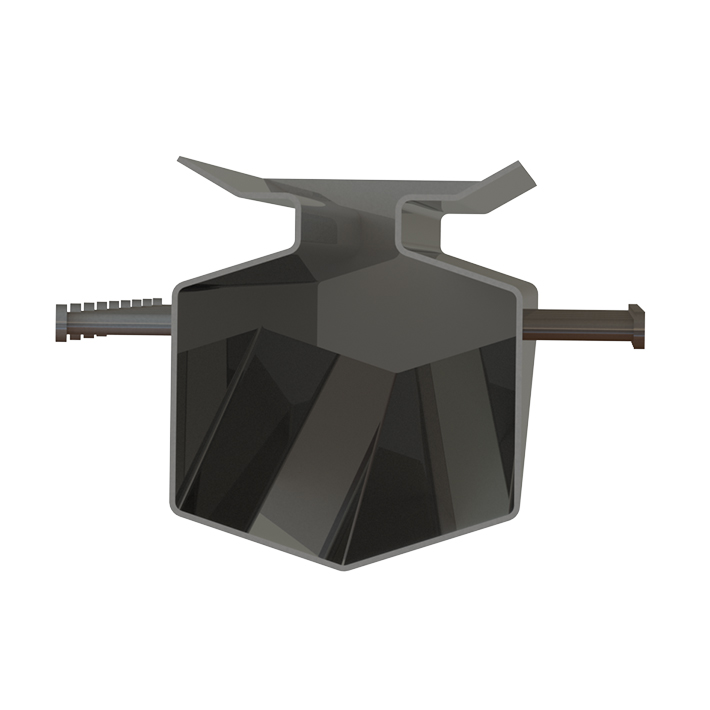

A-01017 trench drain

Model

A-01017

Opening Width

1.53″

Overall Width

5.70″

Depth

7″

Style

Trench Drain

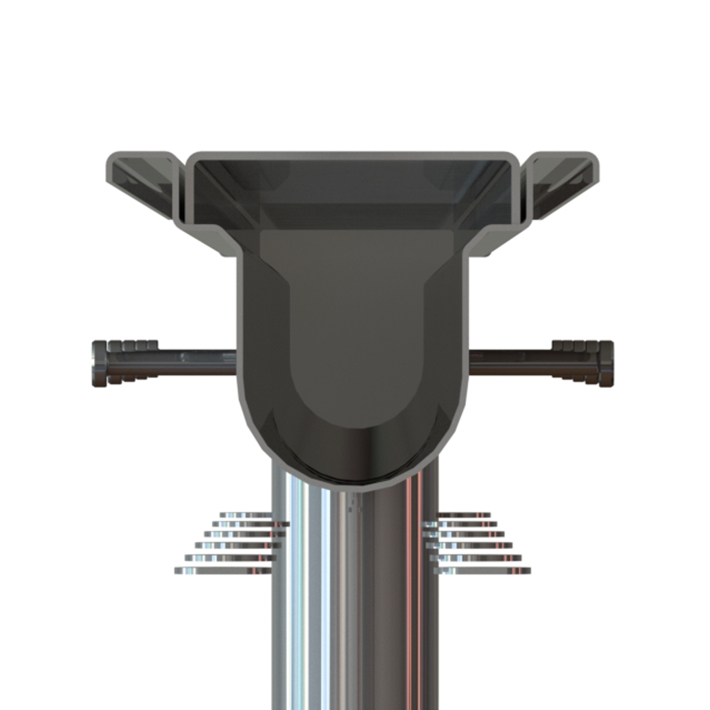

A-02115 trench drain

Model

A-02155

Opening Width

7.13″

Overall Width

4.51″

Depth

7.10″

Style

Trench Drain

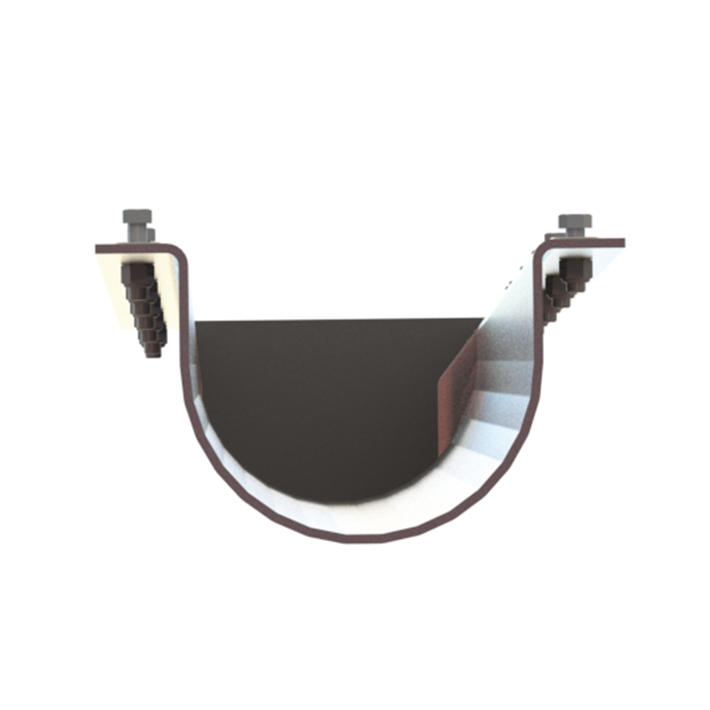

a-03936 trench drain

Model

A-03936

Opening Width

13″

Overall Width

15″

Depth

15″

Style

Trench Drain

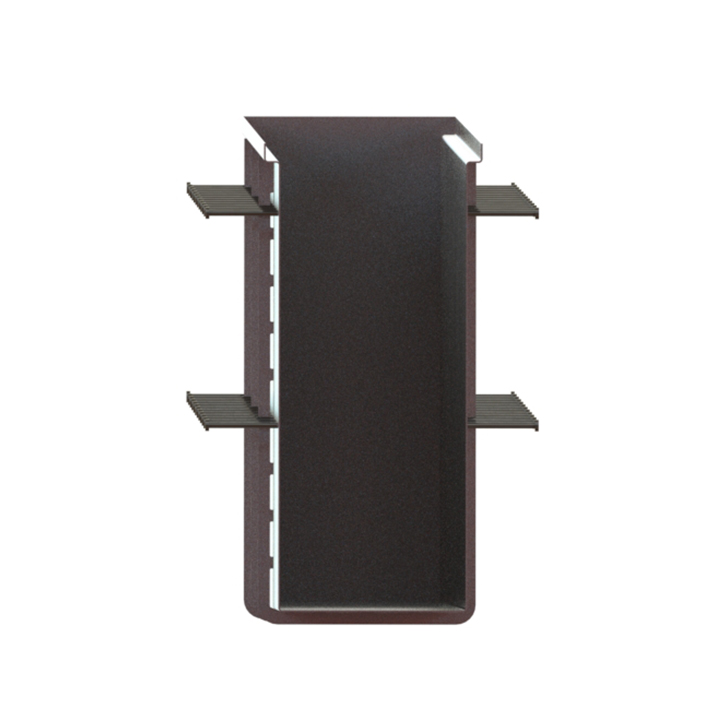

a-09574 trench drain

Model

A-09574

Opening Width

10.02″

Overall Width

10.02″

Depth

42″

Upgrade your facility drains.
