FUSION MOVE

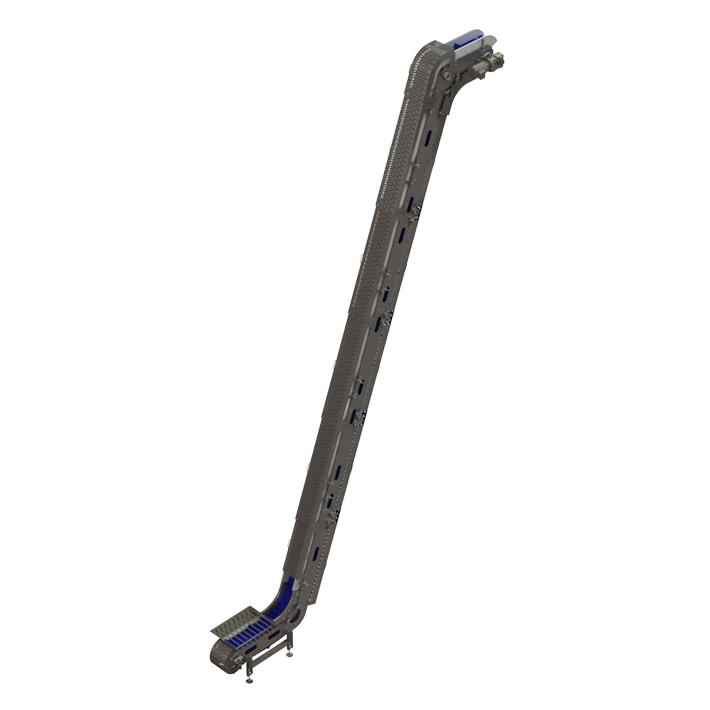

Z Conveyors

Incline Conveyance Solution

Suitable for food processors needing to move product to a higher level in a tight space.

Request A Quote Download Catalog

Equipment Overview

High powered conveyance in limited space.

Move product to a higher level in a limited space with our Z Conveyors.

Originally designed to automate the feeding of a weigh scale, these Z Conveyors can be modified for a number of product and processing line applications.

Intralox Thermodrive 8026 Flat Top E Belting with 4″ Scooped Flights, as well as product guarding, to keep your product on the conveyor during the incline and eliminate product loss.

A tool-less design for removing the belt makes our Z Conveyors easy to clean and maintain.

Upgrade your product handling needs with our Z Conveyor.

Construction

  • Stainless Steel Type 304 Construction
  • Drip Pan on Lower End of Conveyor
  • All Seams Fully Seal Welded
  • Bead Blast Finish

Safety & Sanitation

  • UHMW Belt Overlapping Sides
  • Easy to Clean
  • Meets all AMI Sanitary Equipment Design Requirements

View The Technical Specs

Download the catalog to learn more about our Z conveyors.

Download Catalog

Technical Specs

Belt Width

20″

Incline Angle

90°

Infeed Top of Belt Height

Depends on Mounting

Discharge Top of Belt Height

Depends on Mounting

Length

84.13″

Width

38.85″

Overall Height

141.16″

Weight

1,371.56 lbs

Belt Width

12″

Incline Angle

NEED

Infeed Top of Belt Height

NEED

Discharge Top of Belt Height

NEED

Length

127.14″

Width

19.18″

Overall Height

120.35″

Weight

953.75 lbs

Upgrade your conveyance system.
