Model Number
A-12539
Infeed Height
38.08″
Discharge Height
38.08″
Belt Width
24″
Roller Motor
1/2 HP, 575v, 3 phase
Conveyor Motor
1/2 HP, 575v, 3 phase
Fusion Process
Double Roller
Press
FUSION PROCESS

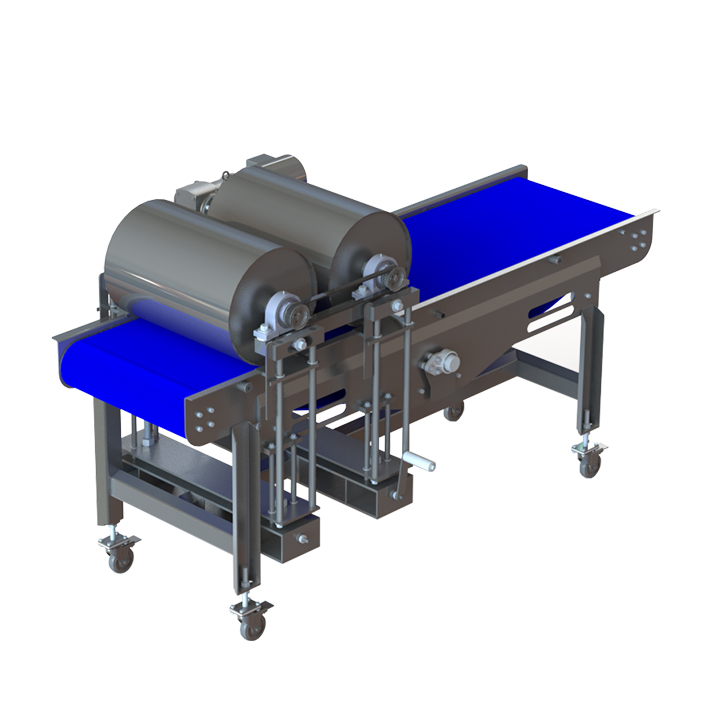

Double Roller Press
Meat Flattening Solution
Suitable for medium to large meat processors looking to flatten meat prior to further processing.
Equipment Overview
Quickly flatten meat before entering a shredder or other further processing equipment.
Make quick work of flattening meat with our double roller conveyor.
The unique design of this roller conveyor allows for each roller to be adjusted independently of the other, giving you the option for a progressive flattening of your product. The rollers can be adjusted from either side of the conveyor.
Both rollers are filled with dye to alert operators and maintenance should the roller ever crack — preventing bacteria from getting into the roller and causing a food safety issue.
Our double roller press meets all AMI sanitary design guidelines.
Improve your meat processing line with our double roller press!
Construction
- Stainless Steel Type 304 Construction
- All Seams Fully Seal Welded
- Robust Design
- Locking casters for easy moving
Safety
- Safety sensors located on conveyor guarding verify safety cage over rollers is securely closed.
Cleaning / Sanitation
- Hinged covers make cleaning the machine easy
- Wash down components allow for high-pressure washing
- Exceeds all AMI Sanitary Design Requirements
Download the catalog to learn more about our double roller press.
Technical Specs
Roller Width
24″
Roller Diameter
16″
Length
114.09″
Width
53.12″
Height
63.88″
Weight
1,938.09 lbs
