FUSION CUT

Snack Stick Cutter

Meat Stick Cutting Solution

Suitable for meat processors looking for a fast and consistent meat stick cut.

Request A Quote Download Catalog

Equipment Overview

Cut meat snack sticks down to size.

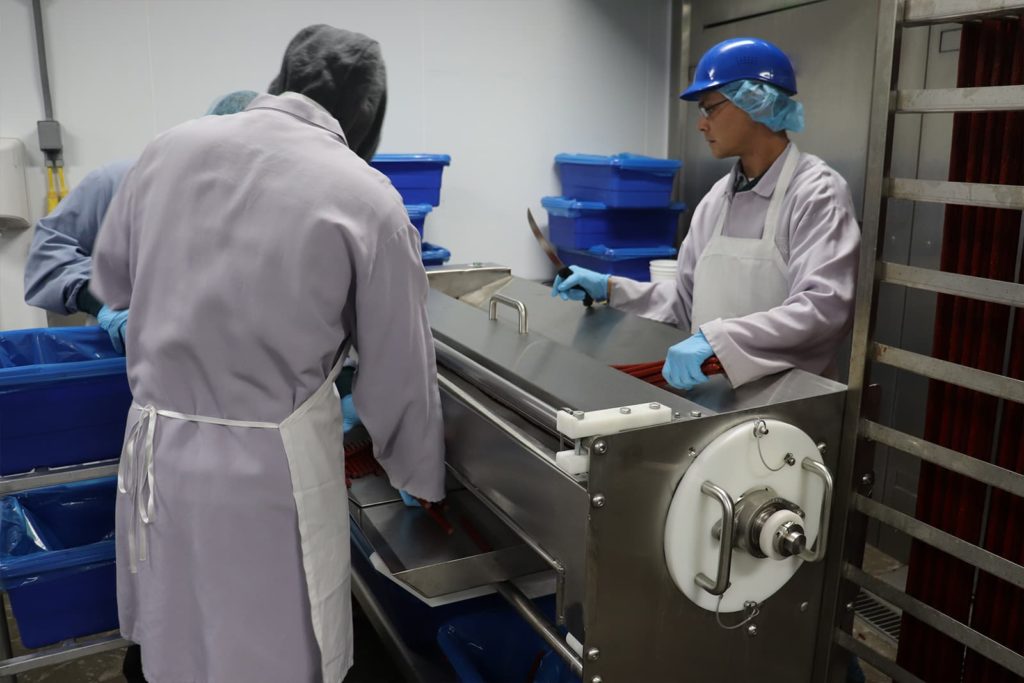

The Snack Stick Cutter makes quick work of cutting meat sticks into snack sized bites. Exclusive features add convenience and versatility — allowing you to effortlessly change the cutting lengths and move product straight from cutting to packaging.

Combined with sanitary design and robust build, and powered by compressed air rather than electricity, the Snack Stick Cutter gives you a precise and versatile cut for years.

Construction

  • Stainless Steel Type 304 Construction
  • All Seams Fully Seal Welded
  • Robust Design
  • Catch Pan
  • Powered by Compressed Air

Safety

  • Safety Senors located under top cover and mechanical door prevent the machine from running if not secured

Cleaning / Sanitation

  • Easy to Clean Components

View The Technical Specs

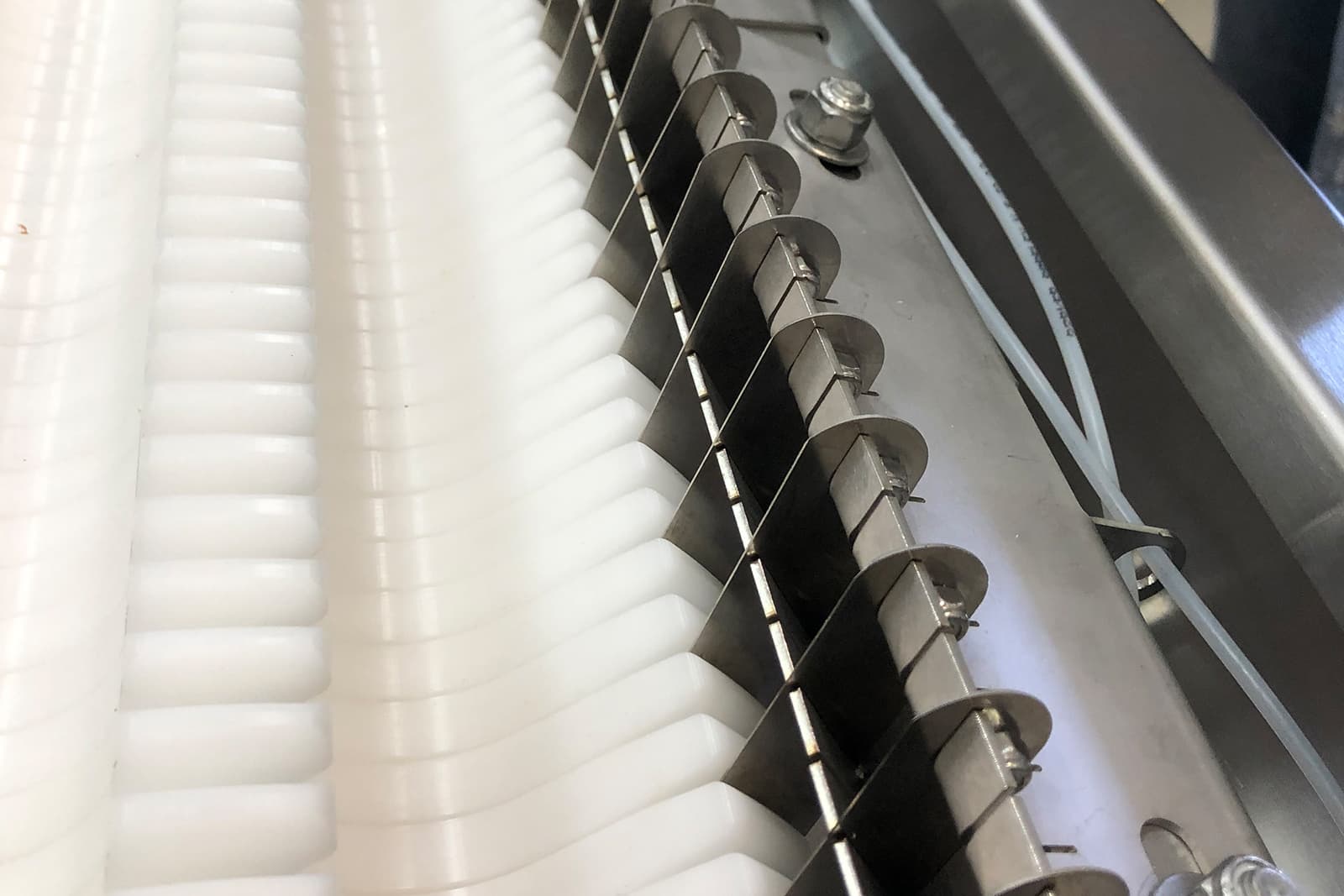

The Snack Stick Cutter comes standard with 10 solid knives.

Knives can be easily moved to adjust the cutting length of your meat sticks. Simply pick them up and move them to a new slot.

Optional “hollow” knives can be purchased to reduce smear when cutting cheese-filled sticks.

View the Optional Knives

Test it with your product in our Innovation Center.

Schedule a Test

Equipment Videos

Snack Stick Cutter

Snack Stick Cutter - 7.5" Sticks

Snack Stick Cutter - 2" Sticks

Snack Stick Cutter - In Facility

Snack Stick Cutter - 17mm, 2.5" Sticks

Snack Stick Cutter - 17mm, 0.5" Bites

Technical Specs

Product State

Cooked

Cutting Increments

1/2″ – standard
1/4″ – optional (extra charge)

Maximum Rope Length

65″

Maximum Rope Diameter

50.8mm

Processing Capacity

100 ropes/min

Operating Air Pressure

90 psi

Load Height

44.50″

Discharge Height

31″

Length

80.45″

Width

30.65″

Height

46.89″

Weight

800 lbs

Equipment Options

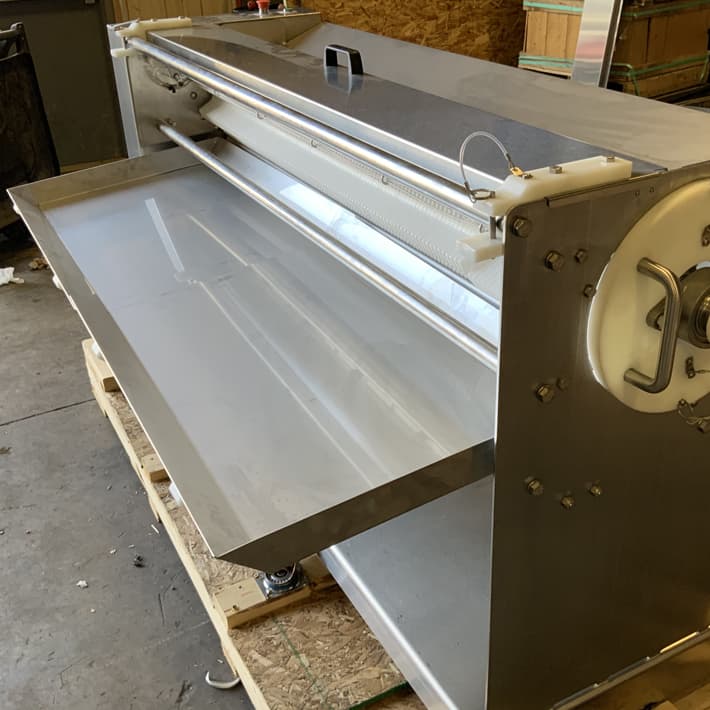

snack stick cutter extension tray

A-20312

Extension Tray

Larger capacity, 5° angled discharge tray moves product away for high capacity cutting. Standard tray: 15" deep. Extension tray: 23" deep.

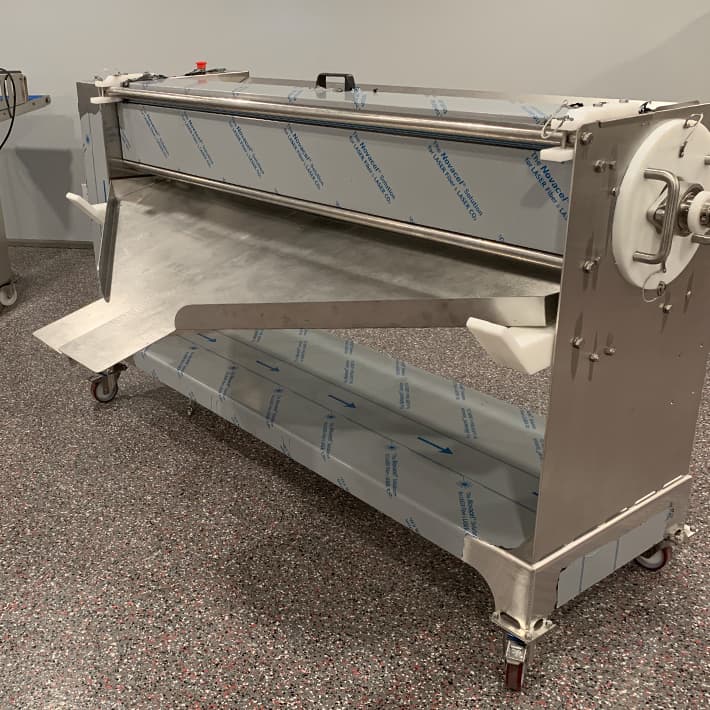

stick cutter combo chute

CMI014426

Combo Chute

Modify the discharge chute to work with a buggy or conveyor.

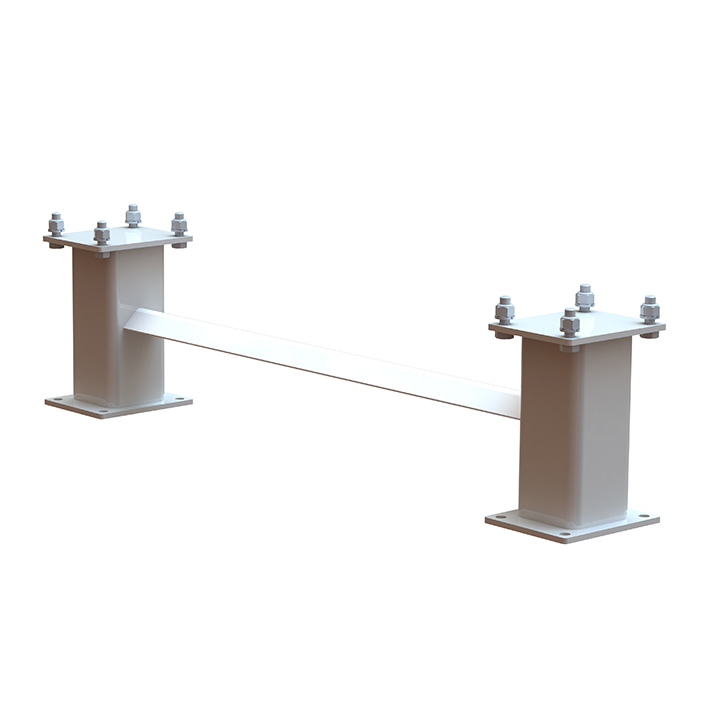

A-21251 snack stick cutter lift kit

A-21251-00 (6") / A-21251-01 (10")

Lift Kit

Lift the Snack Stick Cutter an additional 6" or 10" for better use discharging into combos.

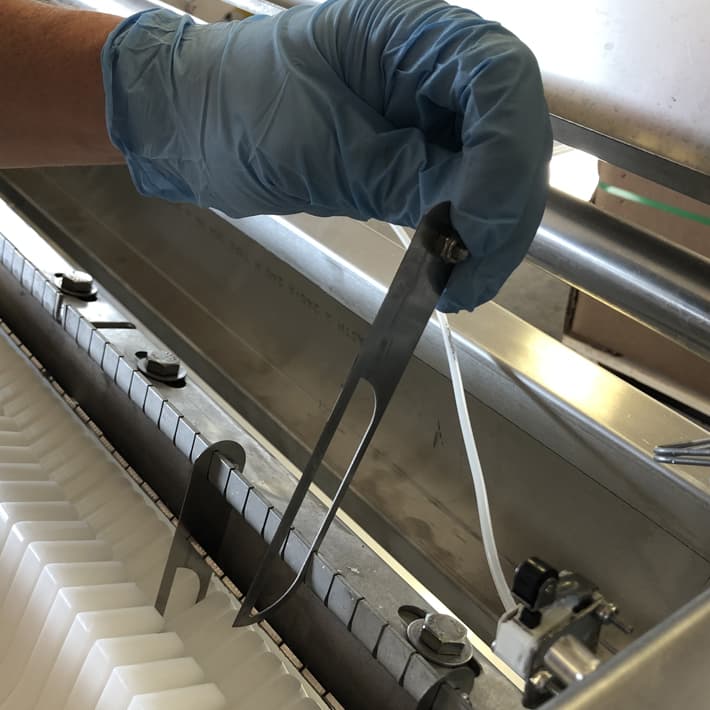

snack stick cutter hollow knives

A-18898-01

Hollow Knives

Reduces smear when cutting cheese-filled meat sticks.

Integration Options

Discharge Conveyor

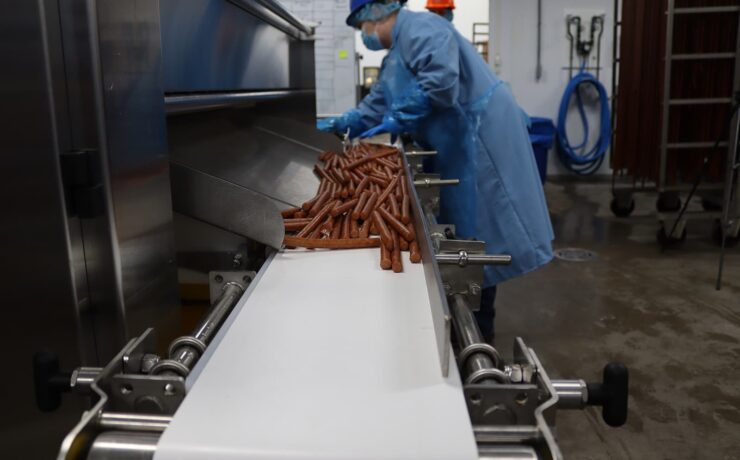

Speed up the cutting process and eliminate the need for one operator with our Stick Cutter discharge conveyor. This conveyor easily mounts to any existing Snack Stick Cutter, replacing the discharge chute to take cut sticks away from the machine and into tubs or onto additional conveyors leading to your packaging line. Two-inch side guards and adjustable speed control help orientate sticks in the same direction to assist with packaging.

Model

CMI015999

Belt Width

8″

Belt Length

112.37″

TOB Height (w/o lift kit)

30″

TOB Height (w/lift kit)

36″

Electrical

120 VAC, 10 amps

Length

112.46″

Width

18.33″

Height

2″

Weight

100 lbs

snack stick cutter accumulation chute

CMI016240

Accumulation Chute

Place this chute on a standard tote cart to accumulate and align sticks before placing them into your tote.

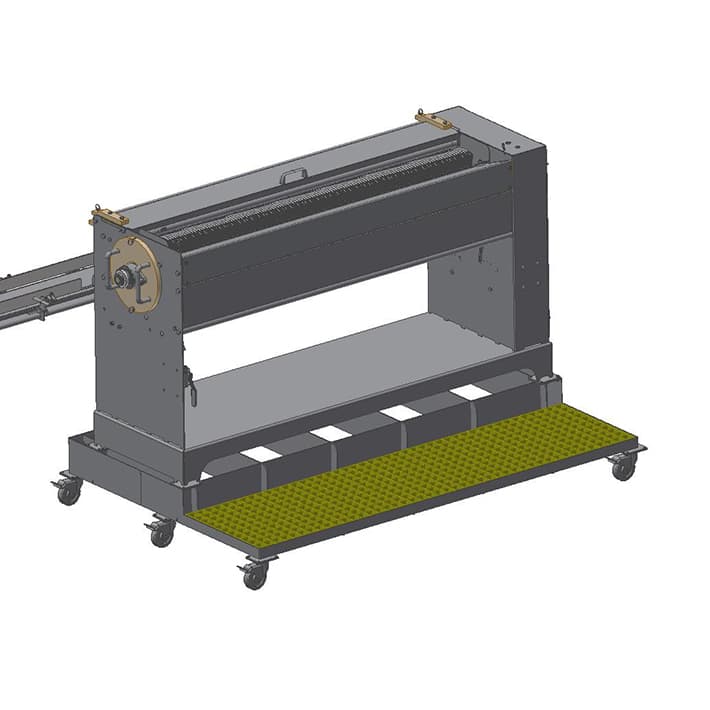

snack stick cutter operator platform

CMI016241

Operator Loading Station

Place the loading and removing operators at ergonomically safe heights when using the discharge conveyor

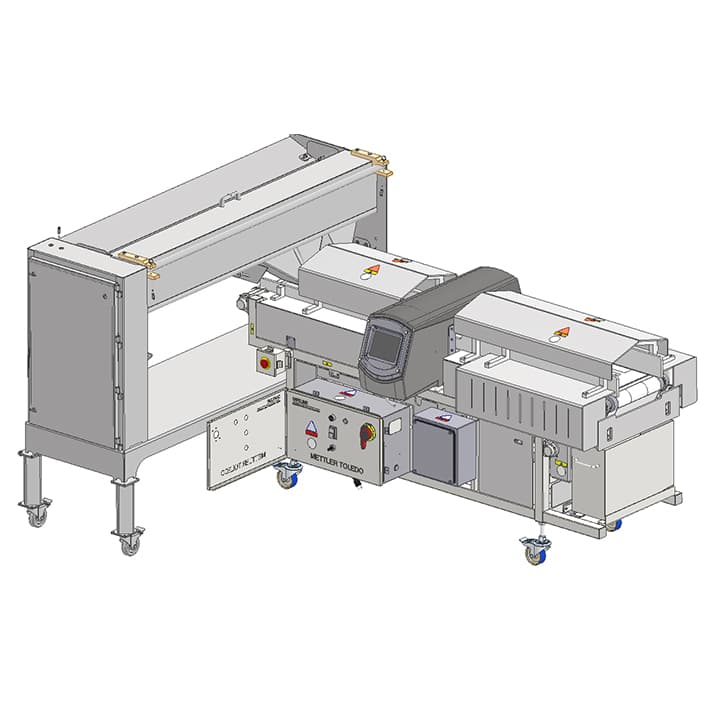

snack stick cutter custom chutes

Custom Chutes

Feed meat sticks from the Snack Stick Cutter onto a conveyor or into OEM equipment with a custom chute.

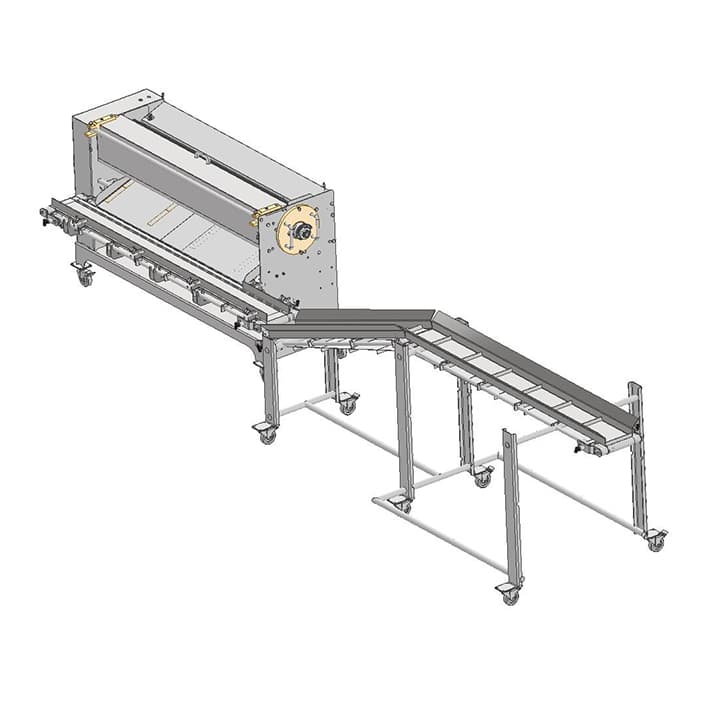

Snack stick cutter custom system

Custom System

Feed meat sticks directly to your OEM equipment with a custom conveyor system.
