FUSION BUILD
Floor Drains
Stainless Steel Drainage Solution
Suitable for food processors looking for a sanitary floor drain.
Equipment Overview
Sanitary and robust floor drains.
Fusion Tech floor drains are the perfect choice for use in food processing plants where sanitation is of prime concern. Constructed of high grade stainless steel with a full round bottom, these floor drains are easy to clean and comply with sanitary design standards.
Our floor drains are available in a wide variety of sizes, and come with a number of options for the top grate. These floor drains are durable enough to meet the most demanding environments.
Each floor drain is custom made to your requirements and specifications and meets all Sanitary Equipment Design principles.
nciples.
- Custom designed for your application
- 304 or 316 stainless steel construction
- Full round bottom (no square corners for easy cleaning)
- Exceeds AMI Sanitary Design requirements
- Multiple configurations for top grate
- Stainless steel drain basket
- GripTECH™ anti-slip coating available
Download the catalog to learn more about our drains.
Technical Specs
Model
A-00345
Length
23.25″
Width
14.76″
Height
17.69″
Style
Floor Drain

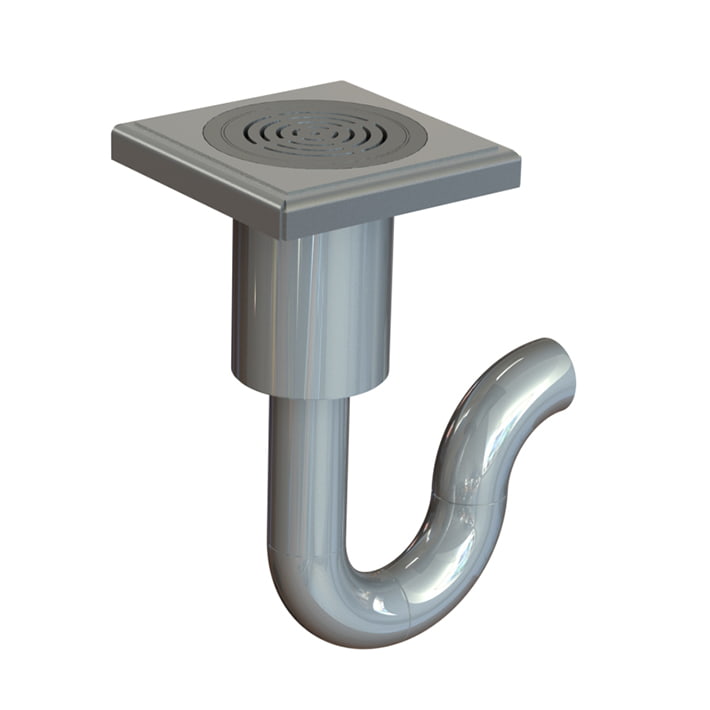

Model
A-09870
Mounting Plate Width
16″
Mounting Plate Length
16″
Diameter
12″
Style
Floor Drain

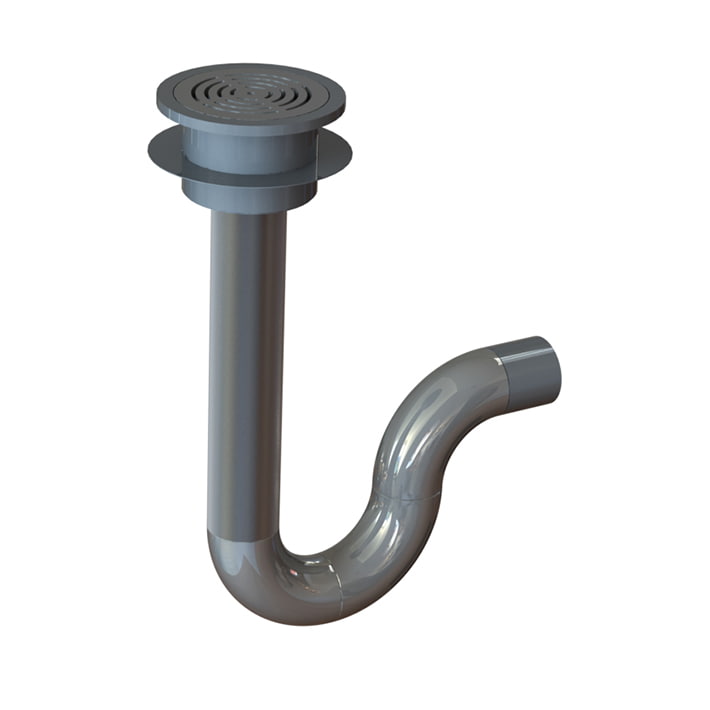

Model
A-02944
Diameter
12″
Strainer Height
5.11″
Style
Removable Round Drain

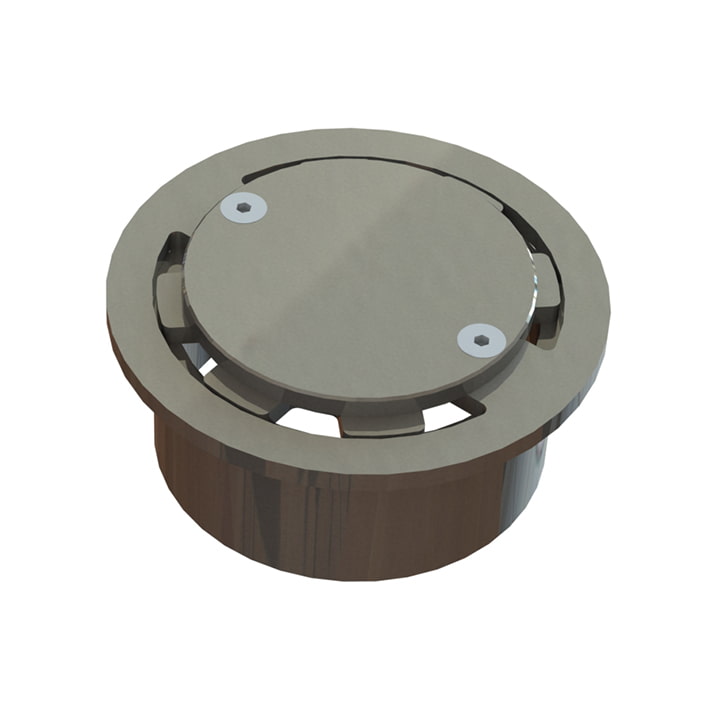

Model
A-06810-04
Opening Diameter
4″
Full Diameter
5.50″
Height
2.50″
Style
Removable Round Drain

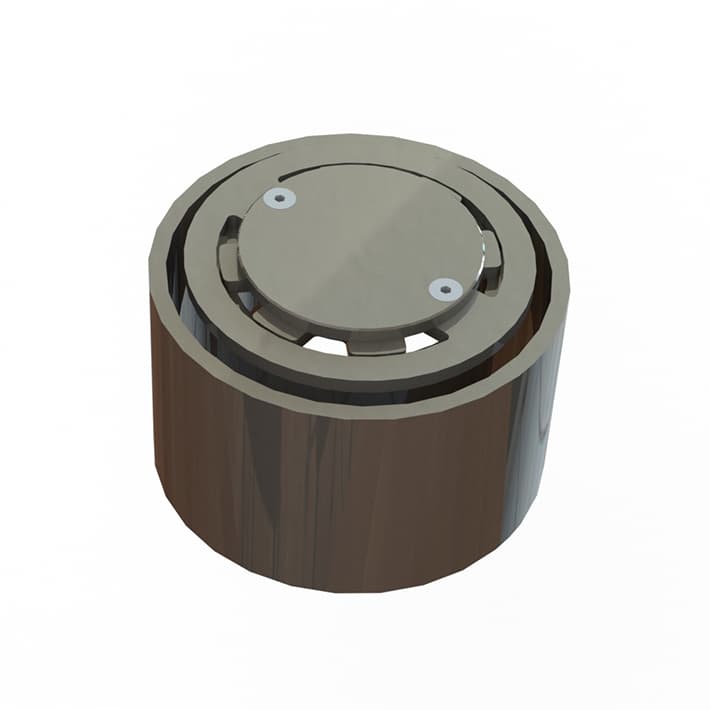

Model
A-06810-06
Opening Diameter
6″
Height
2.50″
Style
Floor Drain

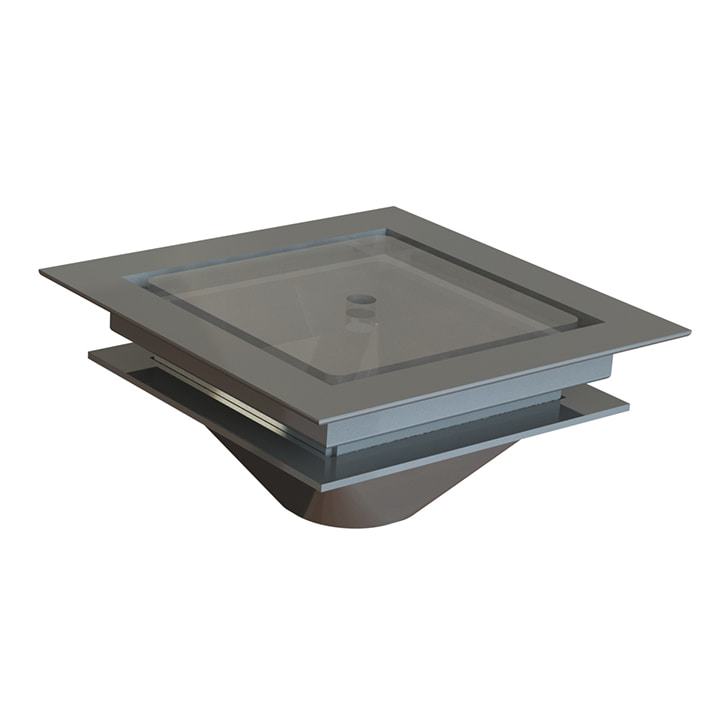

Model
A-01383
Length
15″
Width
15″
Height
7.27″
