FUSION MOVE

Incline & Decline Conveyors

Incline & Decline Conveyance Solution

Suitable for food processors needing to move product.

Request A Quote Download Catalog

Equipment Overview

Incline and decline conveyance.

Fusion Tech Incline and Decline Conveyors are sanitary and robust conveyors designed to provide efficient incline or decline conveyance of your product — whether on its own or as part of a larger conveyor system.

Our Incline and Decline Conveyors come with a variety of options, allowing you to “design your own” and get the exact conveyor that perfectly fits the needs of your specific application. You can view the options available under the Design Your Conveyor section below.

Constructed of high-grade stainless steel with fully seal welded seams and durable component parts, our incline and decline conveyors exceed all AMI Sanitary Design Requirements for use in food processing facilities and are durable enough to withstand the most demanding use.

Sanitary:

  • Continuous TIG welds prevent bacteria growth
  • Horizontal surfaces minimized
  • Angles turned to prevent voids facing down, flat surfaces, or harborage areas
  • UHMW standoffs
  • Drip pans

Cleanability:

  • Belt lifters for quick, easy washdown
  • CIP spray bars to maximize cleanability
  • Belt scrapers

Construction:

  • Machined UHMW carry-ways allow for expansion and contraction
  • Stainless Steel return shafts chrome plated for wear resistance with UHMW return roller
  • Food grade belting and compenents
  • Adjustable foot pads or casters
  • 7-gauge stainless steel construction
  • Angle iron or formed sheet metal frames
  • Guide rails and starwheels
  • Glass bead blast finish
  • “Slide-Out” Cross Conveyors – easily accessible
  • Optional Adjustable ergonomic stands

View The Technical Specs

Download the catalog to learn more about our incline and decline conveyors.

Download Catalog

Design Your Own

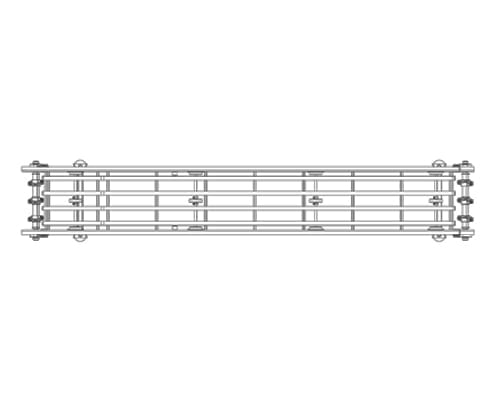

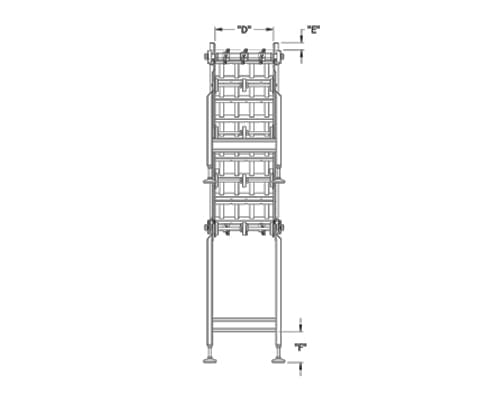

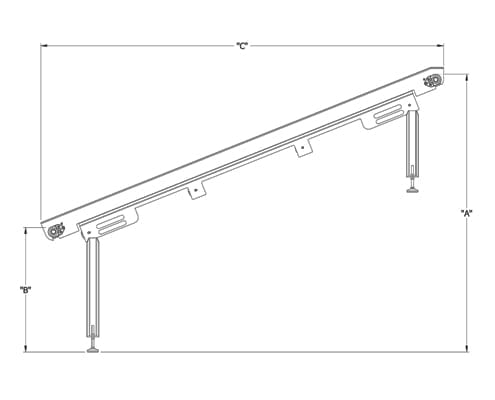

Use the images to the right to reference dimensions.

  • A — In-feed Dimension (top of belt)
  • B — Discharge Dimension (top of belt)
  • C — Length
  • D — Width
  • E — Side Height (above the belt)
  • F — Frame Height

Frame Options:

Choose the style of frame:

  • Formed Sheet Metal
  • Angle Iron
  • Other

Mounting Options:

Choose your mounting option:

  • Ceiling
  • Floor
    • Rigid
    • Swivel
    • Caster

Finish Options:

Choose your finish:

  • Bead Blast
  • 2B
  • DA

Features:

Choose which features you’d like on your conveyor:

  • Belt Lifters
  • Spray Bars
  • Belt Scrapers
  • Drip Pans
  • Local Control Box

Belt Options:

Provide any preferred information. If unknown, our experts will help you choose.

  • Preferred Brand (if any)
  • Dimensions
  • Speed (in FPM)
  • Cleats
    • Cleat Length
    • Center to Center Spacing

Gearbox Options:

Provide any preferred information. If unknown, our experts will help you choose.

  • Preferred Brand (if any)
  • Finish:
    • Stainless
    • Painted

Motor Options:

Provide any preferred information. If unknown, our experts will help you choose.

  • Preferred Brand (if any)
  • HorsePower
  • RPM
  • Voltage
  • Variable Speed Drive
  • Location on Conveyor

Bearing Options:

Provide any preferred information. If unknown, our experts will help you choose.

  • Shaft Diameter
  • Bearing Information
    • IPTCI
    • EDT
    • Other
  • Finish
    • Poly
    • Stainless

Upgrade your conveyance system.

Request a Quote
