FUSION CUT
Snack Stick
Cutter
Meat Stick Cutting Solution
Suitable for meat processors looking for a fast and consistent cut to their meat sticks.
Snack Stick
Product
Overview
Description
Cut meat snack sticks down to size.

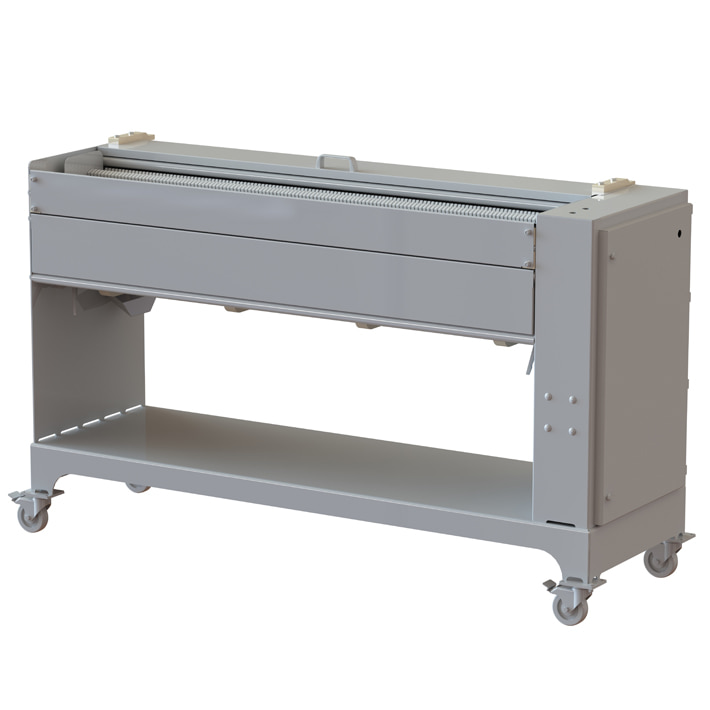

The Snack Stick Cutter makes quick work of cutting meat sticks into snack-sized bites. Exclusive features add convenience and versatility — allowing you to effortlessly change the cutting lengths and move product straight from cutting to packaging.
Combined with sanitary design and robust build, and powered by compressed air rather than electricity, the Snack Stick Cutter gives you a precise and versatile cut for years.
Features
Knives
Equipment Videos
Equipment Options
Extension Tray
A-20312
Larger capacity, 5° angled discharge tray moves product away for high capacity cutting. Standard tray: 15″ deep. Extension tray: 23″ deep.
Combo Chute
CMI014426
Modify the discharge chute to work with a buggy or conveyor.
Lift Kit
A-21251-00 (6″) / A-21251-01 (10″)
Lift the Snack Stick Cutter an additional 6″ or 10″ for better use discharging into combos.
Hollow Knives
A-18898-1
Reduces smear when cutting cheese-filled meat sticks.
Technical
Specs
| Model | A-19851 |
|---|---|
| Product State | Cooked |
| Cutting Increments | 1/2 inch – standard 1/4 inch – optional (extra charge) |
| Maximum Rope Length | 65″ |
| Maximum Rope Diameter | 57mm |
| Processing Capacity | 100 ropes/min |
| Operating Air Pressure | 90psi |
| Load Height | 40.50″ |
| Discharge Height | 31″ |
| Length | 80.45″ |
| Width | 30.65″ |
| Height | 46.89″ |
| Weight | 800 lbs |
Integration Options
Discharge Conveyor
Speed up the cutting process and eliminate the need for one operator with our Stick Cutter discharge conveyor. This conveyor easily mounts to any existing Snack Stick Cutter, replacing the discharge chute to take cut sticks away from the machine and into tubs or onto additional conveyors leading to your packaging line. Two-inch side guards and adjustable speed control help orientate sticks in the same direction to assist with packaging.
| Model | Belt Width | Belt Length | TOB Height (w/lift kit) | Side Rail Height | Electrical | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| CMI015999 | 8″ | 112.37″ | 36″ | 2″ | 120 AC, 10 amps | 112.46″ l, 18.33″w, 2″h | 100 lbs |
Accumulation Chute
Model: CMI016240
Place this chute on a standard tote cart to accumulate and align sticks before placing them into your tote.
Operator Loading Station
Model: CMI016241
Place the loading and removing operators at ergonomically safe heights when using the discharge conveyor. Lifts the Stick Cutter 6 inches and the loading operator 4 inches.
Custom Chutes
Feed meat sticks from the Snack Stick Cutter onto a conveyor or into OEM equipment with a custom chute.
Custom System
Feed meat sticks directly to your OEM equipment with a custom conveyor system.
Cut your meat sticks down to size.
