Hoppers

stainless steel hoppers header

Hoppers

Sanitary Storage & Accumulation

Hoppers

Fusion Tech hoppers provide high capacity storage and accumulation capabilities for use in your food processing facility. Constructed of heavy duty components, these hoppers will last you for years to come.

Our hoppers offer efficiency and versatility, storing and accumulating a wide variety of dry and wet product. We can customize any hopper to fit your exact product and the specific needs of your application.

Our engineers will work with your engineering, maintenance, production, safety, and sanitation teams to examine all project parameters and design a system that minimizes space while maximizing product movement.

Benefits

Custom Designed
Fusion Tech hoppers can be custom designed to meet the needs of your specific application.

Heavy Duty Construction
Our hoppers feature a heavy duty frame, capable of holding large capacities of product.

Robust Design
Our hoppers are designed to be durable enough to withstand the most demanding use.

Sanitary Design
Our hoppers meet all AMI Sanitary Equipment Design requirements, making them easy to clean and safe to use in food processing facilities.

Features

Fusion Tech Hoppers come equipped with a number of standard features designed to for durability, sanitation, and safety.

Construction

  • Stainless Steel Type 304 Construction
  • All Seams Fully Seal Welded
  • Bead Blast Finish
  • Robust Design

Safety & Sanitation

  • Easy to Clean
  • Meets all AMI Sanitary Equipment Design Requirements
Catalog

Download the Fusion Move catalog to learn more about our custom designed hoppers.

Download the Fusion Move catalog to learn more about our custom designed hoppers.

Hopper + Dumper Systems

Add your hopper to a pre-made system for ease of moving product.

Options

Available on all Fusion Tech hoppers. Options shown on our stuffing hoppers.

1
stuffing hopper
1

Splash Guard

Prevents product from spilling over hopper when dumping in product.

Splash Guard

1
stuffing hopper
1

Dimple Jacket Sides

Allow hot water to flow within the walls of the hopper to ensure product flow inside the hopper.

Dimple Jacket Sides

1
stuffing hopper
1

Hopper Brace

Anchors hopper to stuffer or other further processing equipment it is feeding for extra durability, strength, and alignment.

Hopper Brace

1
stuffing hopper
1

Reinforced Frame

Increases strength and durability of the hopper to handle greater capacity.

Reinforced Frame

Download the Fusion Move catalog to learn more about our custom designed hoppers.

Add On Hoppers

Our innovative and robust add on hoppers are designed to provide high capacity storage and accumulation solutions that can be attached to your pre-existing equipment. Contact us today to get a quote.

Standard Sizes

Model # Frame Dimensions Hopper Dimensions Infeed Height (IH) Discharge Height (DH) Style
A-10090 80.44″l x 86.81″w 72″l x 72″w 72″ 12.88″ Stuffing
A-11457 74.06″l x 86.81″w 74.06″l x 74.06″w 72″ 10.98″ Stuffing
A-12617 85.37″l x 86.81″w 72″l x 72″w 59.69″ 12.02″ Stuffing
A-12580 87.87″l x 112.27″w 80″l x 80″w 48.61″ 10.98″ Stuffing with Brace
A-13293 64.44″l x 103.73″w 64.44″l x 64.44″w 56.74″ 10.98″ Stuffing with Brace

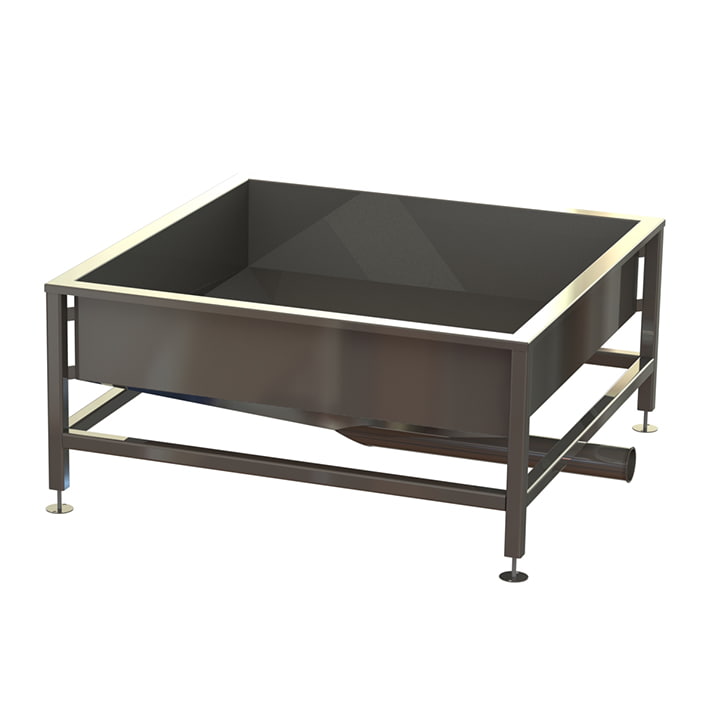

A-01136 88″l x 88″w 80″l x 80″w 37.43″ 3.19″ Large Capacity
A-08948 131.27″l x 132.27″w 120.42″l x 120.83″w 106″ 25″ Large Capacity
A-08946 120.55″l x 156.83″w 120.55″l x 156.83″w 94.94″ 17.44″ Large Capacity
PINN2137 72.71″l x 32.19″w 34.16 (x2)”l x 31.44″w 90.25″ 15.01″ Double
FAR14564 95.67″l x 40″w 41.11 (x2)”l x 36.90″w 123.85″ 31.30″ Double
BPI4364 47.27″ Diameter 44″ Diameter 52.38″ 20.63″ Round
A-13288 33.94″l x 33.94″w 63″ Diameter 87.50″ 15″ Round

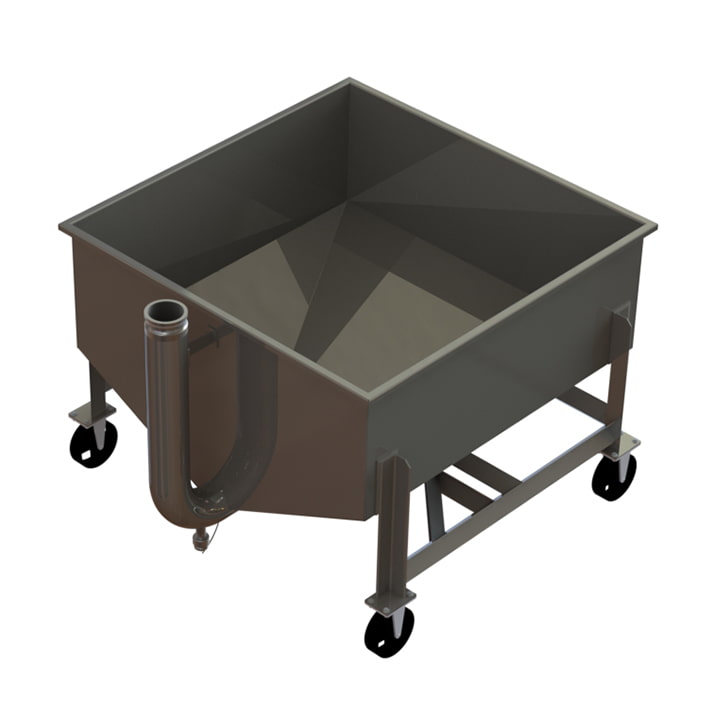

A-04302 69.50″l x 67.27″w 59.29″l x 59.58″w 47″ 12″ (hopper bottom) / 49.43″ (top of pipe) Mobile
WWJ1261 45.16″l x 70.50″w 41.25″l x 35.50″w 50.11″ 34.45″ Auger

Our hoppers can be custom designed to meet the footprint, infeed height, discharge height, style, and shape you need.
